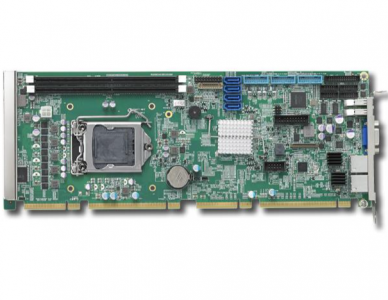

NuPRO-E340

PICMG® 1.3 Full-Size LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processor-based SHB

Key Features

2nd Gen and 3rd Gen Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor

Intel® Q67 Express chipset supporting PCI Express 2.0

Intel® Rapid Storage Technology, supports RAID 0/1/5/10

6x COM ports (including 1x RS-232/422/485/485+)

Supports USB 3.0 with 5 Gb/s data transfer rate

Supports Serial ATA with 6 Gb/s data transfer rate

The ADLINK NuPRO-E340 is a PICMG 1.3 System Host Board (SHB) supporting the next-generation Intel® Core i7/i5/i3 and Pentium® processors in LGA1155 package to deliver a scalable high performance platform for a wide array of industrial applications.

The NuPRO-E340 supports 32nm process CPUs at up to 3.4 GHz with integrated graphics and memory controllers,

Direct Media Interface (DMI) and Flexible Display Interface (FDI) connectivity to the Intel® Q67 Express Chipset. Dual-channel DDR3 1066/1333 MHz memory is supported up to a maximum of 8 GB in two DIMM slots.

These advanced features, coupled with PCI Express® x16 expansion capability, dual PCI Express®-based Gigabit Ethernet, SATA 6 Gb/s and USB 3.0 support make the NuPRO-E340 ideal for vision and automation control applications.

Features

■ 2nd Gen and 3rd Gen Intel® Core™ i7/i5/i3/Pentium®/Celeron®  processor

■ Intel® Q67 Express chipset supporting PCI Express 2.0

■ Intel® Rapid Storage Technology, supports RAID 0/1/5/10

■ 6x COM ports (including 1x RS-232/422/485/485+)

■ Supports USB 3.0 with 5 Gb/s data transfer rate

■ Supports Serial ATA with 6 Gb/s data transfer rate

Specifications

NuPRO-E340

Processor & System

CPU  Intel® Core™ i7-3770. 3.4 GHz, 8M Cache, 22nm, 77W TDP, LGA1155 (4C)

Intel® Core™ i7-2600. 3.4 GHz, 8M Cache, 32nm, 95W TDP, LGA1155 (4C)

Intel® Core™ i5-3550S, 3.0 GHz, 6M Cache, 22nm, 65W TDP, LGA1155 (4C)

Intel® Core™ i5-2400. 3.1 GHz, 6M Cache, 32nm, 95W TDP, LGA1155 (4C)

Intel® Core™ i3-3220. 3.3 GHz, 3M Cache, 22nm, 55W TDP, LGA1155 (2C)

Intel® Core™ i3-2120. 3.3 GHz, 3M Cache, 32nm, 65W TDP, LGA1155 (2C)

Intel® Pentium® G2120. 3.1 GHz, 3M Cache, 22nm, 55W TDP, LGA1155 (2C)

Intel® Pentium® G850. 2.9 GHz, 3M Cache, 32nm, 65W TDP, LGA1155 (2C)

Intel® Celeron® G540. 2.5 GHz, 2M Cache, 22nm, 55W TDP, LGA1155 (2C)

Chipset  Intel® Q67 Express Chipset (Cougar Point)

Memory  2x 240-pin DIMM sockets

Dual -channel DDR3 1333/1600MHz, up to 16 GB

TPM  Infineon SLB 9635 TT 1.2

BIOS  AMIBIOS 64 Mb SPI BIOS

Watchdog Timer 1-255 sec or 1-255 min software programmable, can generate

system reset

Hardware Monitor CPU/System temperature, fan speed and onboard DC voltages

Operating Systems Windows® XP, 7 32/64-bit

Fedora™ 14. Red Hat Enterprise Linux 5

I/O Interfaces

Serial ATA  2x SATA 6 Gb/s ports

4x SATA 3 Gb/s ports

Supports RAID 0/1/5/10

PCI/PCIe Busses  1x PCIe x16. Rev. 2.0

(via backplane)            1x PCIe x4. Rev. 2.0

4x PCI 32-bit/33MHz

USB  2x USB 3.0 ports on faceplate

12x USB 2.0 ports (8x onboard pin headers and

4x backplane)

KB/MS  1x internal pin header for PS/2 keyboard/mouse

Parallel Port  1x LPT

Serial Port  5x RS-232. 1x RS-232/422/485/485+
