6U CompactPCI 2.0 Blades

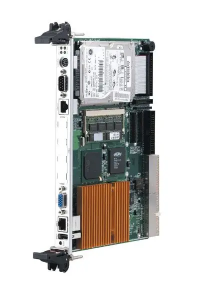

cPCI-6770
6U CompactPCI Intel® Pentium® III processor-Low Power based SBC
The cPCI-6770 Series is scheduled for discontinuation as of 2006/02/24. The recommended replacement product is cPCI-6841.
Key Features
Design for Intel® Pentium® III BGA2 processor-Low Power based CPU running at FSB 100MHz
Two 144-pin SODIMM sockets support up to 512MB SDRAM
Built-in housing for 2.5″ low profile HDD
On-board high performance AGP VGA output via ATI Mobility Radeon M6 controller
All-in-one front access I/O ports, including LAN, COM and USB
One PMC site for expanding functions
6U CompactPCI Low Power Pentium® III SBC
esign for low power BGA2 Pentium III CPU running at FSB 100MHz
Two 144-pin SODIMM sockets support up to 512MB SDRAM
Built-in housing for 2.5″ low profile HDD
On-board high performance AGP VGA output via ATI Mobility Radeon M6 controller
All-in-one front access I/O ports, including LAN, COM and USB
One PMC site for expanding functions
Specifications
CPU Intel BGA2 mobile Pentium-III up to 850MHz with 256K on-die L2 cache
FSB 100MHz
cPCI-6770
Chipset Intel 440BX
RAM Two 144-pin SO-DIMM sockets, up to 512MB SDRAM
Standards PICMG 2.0 R3.0
CompactPCI Bus 32-bit/33MHz, support 7 bus-mastering devices, TI PCI2050
PCI to PCI bridge
Chip Award 2Mb flash memory
Features Intel PXE pre-boot on Ethernet
Display ATI Mobility Radeon M6 with 8MB VRAM
Ethernet Single 10/100Mbps Ethernet Port by Intel 82559
IDE UDMA-33. dual channels, built-in 2.5″ ATA HDD housing
Floppy Standard 34-pin connector and one slim type FDD connector
USB USB 1.1. single port
Front Panel I/Os COM1 (RS-232. DB-9), COM2 (RS-232/422/485. RJ-45),
PS2 KB+MS (combo), USB, LAN, VGA, PMC
Connectors FDD (34-pin & slim type), IDE1 & IDE2 (44-pin), LPT (26-pin)
Form Factor 6U CompactPCI
Dimensions 233mm x 160mm (L x W), 1 slot (4HP) wide
Operating Temp. 0 to 55˚C (inside-chassis temp, CPU type dependant;
external air-flow required)
Storage Temp. -20 to 80˚C
Shock 15G peak-to-peak, 11ms duration, non-operation
Vibration Non-operation: 1.88Grms, 5-500Hz, each axis
Operation: 0.5Grms, 5-500Hz, each axis, with 2.5″ HDD
Measured Power Low Power Pentium III-700 & 128MB RAM:
Consumption 3.2A @ +5V, 5.76A @ +3.3V, 228mA @ +12V (w/o HDD)
Mobile Pentium III-850 & 512MB RAM:
5.8A @ +5V, 5.92A @ +3.3V, 228mA @ +12V (w/o HDD)
Compliance CE, FCC Class A
