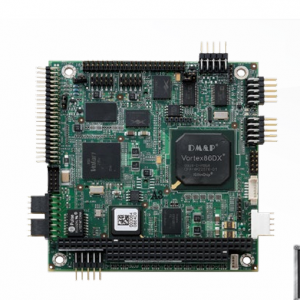

ADLINK/AMPRO CM-435-v2/CM-435 Extreme Rugged™ PC/104 Single Board Computer
ADLINK/AMPRO CM-435-v2 Extreme Rugged™ PC/104 Single Board Computer
with low power Vortex86SX/86DX System-on-Chip
Specifications
Core System
CPU 300MHz Vortex86SX or 800MHz Vortex86DX
Cache 16kB I-cache, 16kB D-cache
Memory 256MB soldered DDR2
System Controllers PC-compatible DMA and interrupt controller and timers
Real Time Clock Battery-backed RTC/CMOS
Powerfail Reset Triggers when key voltage drops below predetermined
thresholds
BIOS AMI BIOS
BUS ISA
I/O Interfaces
PATA DMA 100 IDE interface supports up to two hard drives
Storage CompactFlash socket
Serial 2x RS-232. 2x RS-232/422/485
USB 2x USB 2.0 ports
KB/MS PS/2 interface
GPIO Eight general-purpose digital I/O pins
Ethernet
Ethernet 1x integrated Vortex86 10/100 port and 1x Intel® 82541PI
Gigabit Ethernet
Video
Graphics Engine Integrated 2D, 64-bit, single-cycle, 100MHz
Resolution 1600 x 768
Video Memory 32/64MB DDR2
VGA Yes
TTL/TFT Dual Channel 12-bit or Single Channel 18-bit color depth
Supports 3.3V, 5V flat panels
CM-435
Power
Power Requirement 1.3A @5V
Mechanical and Environmental
Form Factor PC/104
Size 90 x 96 mm (3.6 x 3.8”)
Board Thickness 2.36 mm (0.093”)
Operating Temperature (100 LFM system air flow)
• Standard: -20°C to +70°C
• Extreme Rugged™: -40°C to +85°C
Storage Temperature -55°C to +85°C
Operating Systems
Extended Support (BSP) Win XPe, WinCE 5.0/6.0. QNX 6.3/6.4/6.5. Linux
Ordering Information
Extreme Rugged™ PC/104 Single Board Computer
with low power Vortex86SX/86DX System-on-Chip
CM-435
Features
Extreme Rugged™ operating temperature: -40°C to +85°C
10/100 Ethernet, Gigabit Ethernet, 3D Video
4x Serial, 2x USB, 8x GPIOs
Ultra Low Power
486 migration
Modules
Model Number Description/Configuration
CM-435-R-10 CoreModule® 435. 300MHz Vortex CPU, 256MB RAM,
Video, 10/100 & Gigabit Ethernet
CM-435-R-12 CoreModule® 435. 800MHz Vortex CPU, 256MB RAM,
Video, 10/100 & Gigabit Ethernet
Accessories
Model Number Description/Configuration
CM-435-L-10 300MHz QuickStart Kit (CM-435-R-10 SBC, cable kit,
software, documentation)
CM-435-L-12 800MHz QuickStart Kit (CM-435-R-12 SBC, cable kit,
software, documentation)
Recommended Configurations
Model Number Description/Configuration
CM-435-R-10 (ETT) CM-435-R-10. -40°C to +85°C (optional)
CM-435-R-12 (ETT) CM-435-R-12. -40°C to +85°C (optional)
