ADLINK 6U Rear Transition Modules cPCI-R6700 Series
6U Rear Transition Modules
cPCI-R6700 Series

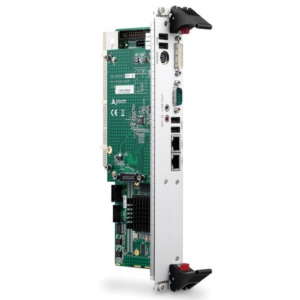

6U CompactPCI Rear Transition Module with ATI/AMD Radeon™ E4690 GPU
Key Features
ATI/AMD Radeon™ E4690 embedded GPU
512MB on-chip GDDR3 VRAM
Supports dual independent DVI-I displays
Onboard VBIOS update available
PICMG 2.16 Packet Switch Backplane R1.0 compliant
The cPCI-R6700 is 6U CompactPCI Rear Transition Module (RTM) designed for use with ADLINK 6U CompactPCI CPU blades.
This RTM provides dual independent display support from a discrete GPU as well as USB, LAN, COM, Audio and SATA connectivity.
cPCI-R6700 cPCI-R6700D
I/O Faceplate Onboard Faceplate Onboard
LAN 2 2
USB 3 2 3 2
DVI-I 2 2
RS-232/422/485 1 1
PS/2 KB/MS 1 1
Audio 1 1
RS-232 1 1
SATA 3 3
Auxiliary Power 1 1
6U CompactPCI® Rear Transition Module with
ATI/AMD Radeon™ E4690 GPU
Features
ATI/AMD Radeon™ E4690 embedded GPU
512MB on-chip GDDR3 VRAM
Supports dual independent DVI-I displays
Onboard VBIOS update available
PICMG 2.16 Packet Switch Backplane R1.0
compliant
cPCI-R6700
Specifications
Processor & System
GPU ATI/AMD Radeon™ E4690 Graphics Controller
Support DirectX 10.1 and Open GL 3.3
Memory Integrated in GPU with 128-bit memory interface, 512MB
GDDR3 video memory
Up to 600MHz engine clock and 700MHz memory clock
Connectivity
Graphics ATI/AMD Radeon™ E4690 Graphics Controller
PCI Express x4 lane interface
Integrated 128-bit 512MB GDDR3 memory
Two DVI-I (digital+analog) ports on front panel, resolution up
to 3840×2400 per display output
Auxiliary power connector onboard
Ethernet Two LAN ports routed from CPU board
Audio One Mic-in/Line-in/Line-out 10-pin box hearder on board
supported by Realtek ALC262 HD Audio codec
USB Three USB 2.0 ports RTM panel, additional one 5-pin
USB 2.0 pin header and one 10-pin box header
Serial Port One RS-232/422/485 DB-9 port on RTM panel
One 10-pin COM box header supports RS-232 TX/RX only
PS/2 One 10-pin Key board mouse box header on board
PS/2 port on panel from 10pin header (cPCI-R6700D only)
Storage
SATA Three 7-pin SATA signal connectors
Space reserved for one onboard 2.5” SATA drive
(cPCI-R6700D only)
Operating System
OS Microsoft Windows® XP, 7. Server 2003. Server 2008
Red Hat Enterprise Linux 6.0
Mechanical & Environmental
Form Factor 6U 4HP/8HP CompactPCI Rear Transition Module
233.35mm x 80mm
Operating Temperature Standard Temperature 0ºC to +60ºC
Extended Temperature -20ºC to +70ºC
Storage Temperature -40ºC to +85ºC
Power Consumption 22W at 600MHz clock engine with cPCI-6210 when running
3D Mark06
Provided with 6-pin power cable for auxiliary power support
Compatible CPU board
CPU boards cPCI-6530/cPCI-6520/cPCI-6930/cPCI-6210/cPCI-6510
