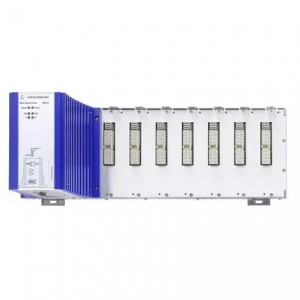

Hirschmann MSP30-16040SCY999HHE2A
Product: MSP30-16040SCY999HHE2A
Configurator: MSP30-16040SCY999HHE2A
Configurator Description
The MSP switch product range offers complete modularity and various high-speed port options with up to 10 Gbit/s. Optional Layer 3 software packages for
dynamic unicast routing (UR) and dynamic multicast routing (MR) offer you an attractive cost benefit – “Just pay for what you need.” Thanks to Power over
Ethernet Plus (PoE+) support, terminal equipment can also be powered cost-effectively.
Technical Specifications
Product description
Type MSP30-20-2A (Product Code: MSP30-16040SCY999HHE2AXX.X.XX)
Description Modular Gigabit Ethernet Industrial Switch for DIN Rail, Fanless design , Software HiOS Layer 2 Advanced
Software Version HiOS 09.0.10
Part Number 942076005
Configurator Part
Number 942076998
Port Type and
Quantity Fast Ethernet ports in total: 16; Gigabit Ethernet ports: 4
More Interfaces
Power
supply/signaling
contact
2 x plug-in terminal block, 4-pin
V.24 interface 1 x RJ45 socket
SD-card slot 1 x SD card slot to connect the auto configuration adapter ACA31
USB interface 1 x USB to connect auto-configuration adapter ACA21-USB
Network size – cascadibility
Line – / star topology any
Power requirements
Operating Voltage 24 V DC (18-32 ) V
Power Consumption 17.0 W
Power output in
BTU (IT)/h 58
Software
Switching
MSP30-16040SCY999HHE2A
CoS Queue Management, Egress Interface Shaping, Fast Aging, Flow Control (802.3X), Forward unknown multicast to query ports, GARP Multicast Registration Protocol (GMRP), GARP
VLAN Registration Protocol (GVRP), IGMP Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Ingress Storm Protection, Interface Trust Mode, IP Egress DiffServ
Classification and Policing, IP Ingress DiffServ Classification and Policing, IP subnet-based VLAN, Jumbo Frames, MAC-based VLAN, Multiple MAC Registration Protocol (MMRP),
Multiple Registration Protocol (MRP), Multiple VLAN Registration Protocol (MVRP), Protocol-based VLAN, QoS / Port Prioritization (802.1D/p), Queue-Shaping / Max. Queue Bandwidth,
Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, Unknown Multicast Filtering, VLAN (802.1Q), VLAN Unaware Mode, Voice VLAN
Redundancy
HIPER-Ring (Ring Switch), HIPER-Ring over Link Aggregation, Link Aggregation with LACP, Link Backup, Media Redundancy Protocol (MRP) (IEC62439-2) – Redundancy Client, Media
Redundancy Protocol (MRP) (IEC62439-2) – Redundancy Manager, MRP over Link Aggregation, MSTP (802.1Q), Redundant Network Coupling, RSTP 802.1D-2004 (IEC62439-1), RSTP
Guards, Sub Ring Manager
Management DNS Client, Dual Software Image Support, HTTP, HTTPS, LLDP (802.1AB), LLDP-MED, OPC-UA Server, SCP, SFTP, SNMP v1/v2/v3. SSHv2. Telnet, TFTP, Traps, V.24
Diagnostics
Configuration Check Dialog, Copper Cable Test, Device Status Indication, Duplex Mismatch Detection, Email Notification, LEDs, Link Flap Detection, Link Speed and Duplex Monitoring,
Loop Protection, MAC Notification, Management Address Conflict Detection, Overload Detection, Persistent Logging on ACA, Port Mirroring 1:1. Port Mirroring 8:1. Port Mirroring N:1.
Port Mirroring N:2. Port Monitoring with Auto-Disable, RMON (1.2.3.9), RSPAN, Self-Tests on Cold Start, SFLOW, SFP Management, Signal Contact, Snapshot Configuration Feature,
Switch Dump, Syslog, System Information, TCPDump, VLAN Mirroring
Configuration
Auto Disable, AutoConfiguration Adapter ACA21/22 (USB), AutoConfiguration Adapter ACA31 (SD card), Automatic Configuration Undo (roll-back), Backup config on a remote server
when saving, BOOTP/DHCP Client with Auto-Configuration, Clear config but keep IP settings, CLI script handling over ENVM at boot, CLI Scripting, Command Line Interface (CLI),
Configuration Fingerprint, Context-sensitive Help, DHCP Relay with Option 82. DHCP Server: per Port, DHCP Server: Pools per VLAN, Full-featured MIB Support, HiDiscovery, HTML5
based Management, Web-based Management, XML-based Configuration File
Security
Access to Management restricted by VLAN, ACL Flow-based Limiting, Appropriate Use Banner, Audit Trail, CLI Logging, Configurable Number of Login Attempts, Configurable Password
Policy, Denial-of-Service Prevention, Device Security Indication, DHCP Snooping, Dynamic ARP Inspection, Egress IPv4-based ACL, Egress MAC-based ACL, Egress VLAN-based ACL,
Format options for MAC authentication bypass, Guest/unauthenticated VLAN, HTTPS Certificate Management, Ingress IPv4-based ACL, Ingress MAC-based ACL, Ingress VLAN-based
ACL, Integrated Authentication Server (IAS), IP Source Guard, LDAP, Local User Management, MAC Authentication Bypass, MAC-based Port Security, Multi-Client Authentication per
Port, Multiple Privilege Levels, Password change on first login, Port-based Access Control with 802.1X, RADIUS Client, RADIUS Policy Assignment, RADIUS VLAN Assignment, Remote
Authentication via RADIUS, Restricted Management Access, SNMP Logging, Time-based ACL, User Account Locking, VLAN-based ACL
Time
synchronisation Buffered Real Time Clock, PTPv2 Boundary Clock, PTPv2 Transparent Clock two-step, SNTP Client, SNTP Server
Industrial Profiles EtherNet/IP Protocol, IEC61850 Protocol (MMS Server, Switch Model), Modbus TCP, PROFINET Protocol
Miscellaneous Digital IO Management, Manual Cable Crossing, Port Power Down
Ambient conditions
Operating
temperature 0-+60
Minimum Storage
Temperature-40-+70 °C
Relative humidity
(non-condensing) 5-95 %
Mechanical construction
Dimensions
(WxHxD) 314 x 148 x 142 mm
Weight 2.4 kg
Mount Type DIN rail
IP Protection Rating IP20
Mechanical stability
IEC 60068-2-6
vibration 5 Hz – 8.4 Hz with 3.5 mm amplitude; 8.4 Hz-150 Hz with 1 g
IEC 60068-2-27
shock 15 g, 11 ms duration, 18 shocks
EMC interference immunity
EN 61000-4-2
electrostatic
discharge (ESD)
± 4 kV contact discharge; ± 8 kV air discharge
EN 61000-4-3
electromagnetic field 10 V/m (80 MHz-3000 MHz)
EN 61000-4-4 fast
transients (burst) ± 2 kV power line; ± 4 kV data line
EN 61000-4-5 surge
voltage power line: ± 2 kV (line/earth), ± 1 kV (line/line); data line: ± 1 kV (line/earth)
EN 61000-4-6
Conducted Immunity 10 V (150 kHz-80 MHz)
