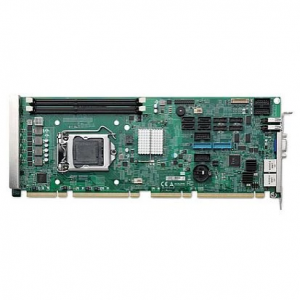

Adlink NuPRO-E42 51-41808-0A30 Industrial Motherboard

Adlink NuPRO-E42 51-41808-0A30 Industrial Motherboard

NuPRO-E42

PICMG® 1.3 Full-Size LGA1150 Intel® Core™ i7/i5/i3/Pentium® Processor-based SHB

Key Features

4th Gen Intel® Core™ i7/i5/i3/Pentium® processor

Intel® Q87 Express chipset supporting PCI Express 3.0

Intel® Rapid Storage Technology, supports RAID 0/1/5/1+0

6x COM ports (including 1x RS-232/422/485)

Supports USB 3.0 with 5 Gb/s data transfer rate

ADLINK NuPRO-E42 is the latest PICMG® 1.3 full-sized System Host Board (SHB), which utilizes the 4th generation Intel Core processor at core speeds up to 3.1GHz combined with the Intel Q87 Express chipset, and provides high-speed data transfer interfaces such as USB 3.0 and SATA 6 Gb/s (SATA III).

The ADLINK NuPRO-E42 provides a wide range of storage, I/O, and expansion connectivity, including one PCI Expressx16. four PCI Expressx1 and four PCI, 6 COM ports, 12 USB ports (6 USB 3.0), and 4 SATA 6Gb/s supported RAID 0. 1. 5. 1+0 by Intel Rapid Storage Technology.

With dual-channel DDR3 1333/1600 MHz memory up to 16GB in two DIMM sockets, the NuPRO-E42 SHB is ideally suited to applications requiring multi-tasking capabilities, high computing power, and high-speed data transfer rates such as industrial control, machine vision, and automation.

NuPRO-E42

Features

■ 4th Gen Intel® Core™ i7/i5/i3/Pentium®  processor

■ Intel® Q87 Express chipset supporting PCI Express 3.0

■ Intel® Rapid Storage Technology, supports RAID 0/1/5/1+0

■ 6x COM ports (including 1x RS-232/422/485)

■ Supports USB 3.0 with 5 Gb/s data transfer rate

■ Supports Serial ATA with 6 Gb/s data transfer rate on SHB

Specifications

Processor & System

CPU  Intel® Core™ i7-4770S, 3.10 GHz, 8M Cache, 22nm, 65W TDP, LGA1150 (4C)

Intel® Core™ i5-4570S, 2.90 GHz, 6M Cache, 22nm, 65W TDP, LGA1150 (4C)

Intel® Core™ i3-4330. 3.5 GHz, 3M Cache, 22nm, 54W TDP, LGA1150 (2C)

Intel® Pentium® G3420. 3.2 GHz, 3M Cache, 22nm, 54W TDP, LGA1150 (2C)

Chipset  Intel® Q87 Express chipse

Memory  2x 240-pin DIMM sockets

Dual-channel DDR3 1600 MHz, up to 16 GB

BIOS  AMI® BIOS, 2×32 Mbit SPI Flash memory

TPM  Infineon SLB 9635 TT 1.2

Watchdog Timer 1-255 sec or 1-255 min software programmable and can

generate system reset

Hardware Monitor CPU/System temperature, fan speed and onboard DC voltages

Operation Systems Microsoft® Windows® XP 32-bit

Microsoft® Windows® 7 32/64-bit

Microsoft® Windows® 8 32/64-bit

Microsoft® Windows® Server 2008 R2

Ubuntu 13.10

I/O Interfaces

Serial ATA  4 Serial ATA ports with 6 Gb/s data transfer rate on SHB

SATA ports support RAID 0. 1. 5. 1+0 by Intel Rapid Storage

Technology

PCIe/PCI Bus 1x PCIe x16. Rev. 3.0

(via backplane) 4x PCIe x1. Rev. 2.0 (4x PCIex1 or 1x PCIex4 compatible)

4x PCI 32-bit/33MHz

USB  6x USB 3.0 ports on SHB, 2x on faceplate, 4x on SHB

4x USB 2.0 ports on backplane

KB/MS  1x internal pin header for PS/2 keyboard/mouse

Serial Port  5x RS-232 and 1x RS-232/422/485 with auto flow control

(select by jumper)

Audio

Audio Codec  Realtek ALC262 support by DB-Audio2 daughter board

Interface  Pin header for High Definition Audio interface
