HIRSCHMANN SPIDER-PL-20-05T1999999TWVHHHH Industrial Ethernet Rail Switch
HIRSCHMANN SPIDER-PL-20-05T1999999TWVHHHH
The device name corresponds to the product code. The product code is
made up of characteristics with defined positions. The characteristic values
stand for specific product properties.
The following device variants have a corresponding short designation in
addition to the product code:
Short designation Product code
SPR20-7TX/2FM-EEC SPIDER-PL-20-07T1M2M299TxxxxHHxx
SPR20-7TX/2FS-EEC SPIDER-PL-20-07T1S2S299TxxxxHHxx
SPR20-8TX/1FM-EEC SPIDER-PL-20-08T1M29999TxxxxHHxx
SPR20-8TX-EEC SPIDER-PL-20-08T1999999TxxxxHHxx
SPR40-1TX/1SFP-EEC SPIDER-PL-40-01T1O69999TxxHHHHxx
SPR40-1TX/1SFP-EEC-HO SPIDER-PL-40-01T1O69999TxxHKxxxx
SPR40-8TX-EEC SPIDER-PL-40-08T1999999TxxxxHHxx
Table 4: Device variants with short designation
Item Characteristic Characteristic
value
Description
1…9 Product SPIDER-PL SPIDER Premium Line
10 (hyphen)–
11 Data rate 2 10/100Mbit/s
3 10/100Mbit/s and 10/100/1000Mbit/s
4 10/100/1000Mbit/s
12 Power over Ethernet
(PoE)
0 without PoE support
13 (hyphen)–
14…17 Number
Twisted pair ports
01T1
04T1
05T1
06T1
07T1
08T1
16T1
24T1
SPIDER
18…19Optical fiber port 1 M2 DSC multimode socket for 100 Mbit/s F/O
connections
S2 DSC singlemode socket for 100 Mbit/s F/O
connections
M4 ST multimode socket for 100 Mbit/s F/O
connections
O6 SFP slot for 100/1000Mbit/s F/O
connections
Z6 SFP slot for 100Mbit/s F/O connections
99 without
Table 5: Device name and product code

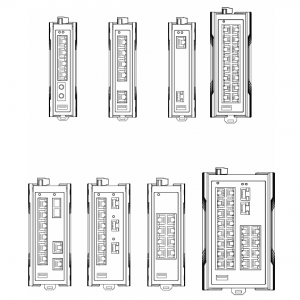

Front view using example of the device variants SPIDER PL-40…
SPIDER PL 40-08T1…
1 LED display elements for device status
2 6-pin, pluggable terminal block for power supply and signal contact
3…6 4× RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections
7 USB interface
8 Rail lock slide for DIN rail mounting
9 … 124× RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections
SPIDER PL-40-05T1…
1 LED display elements for device status
2 6-pin, pluggable terminal block for power supply and signal contact
3…7 5× RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections
8 USB interface
9 Rail lock slide for DIN rail mounting
SPIDER PL-40-01T1…
1 LED display elements for device status
2 6-pin, pluggable terminal block for power supply and signal contact
3 LED display elements for port status
4 RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections
5 SFP slot for 100/1000Mbit/s F/O connections
6 Rail lock slide for DIN rail mounting
