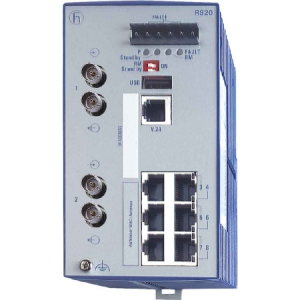

HIRSCHMANN Switch RS20-0800M4M4SDAE

RS20/30/40 Managed Switch configurator – These hardened, compact managed industrial DIN rail Ethernet switches provide an optimum degree of flexibility with several thousand variants.

Fast Ethernet Ports with/without PoE The RS20 compact OpenRail managed Ethernet switches can accommodate from 4 to 25 port densities and are available with different Fast Ethernet uplink ports – all copper, or 1. 2 or 3 fiber ports. The fiber ports are available in multimode and/or singlemode. Gigabit Ethernet Ports with/without PoE The RS30 compact OpenRail managed Ethernet switches can accommodate from 8 to 24 port densities

Description    Managed Fast-Ethernet-Switch for DIN rail store-and-forward-switching, fanless design ; Software Layer 2 Enhanced

Part Number    943434017

Port Type and Quantity    8 ports in total: 6 x standard 10/100 BASE TX, RJ45 ; Uplink 1: 1 x 100BASE-FX, MM-ST ; Uplink 2: 1 x 100BASE-FX, MM-ST

Product Life Cycle

Availability    passiv

Last Order Date    2023-12-31

Last Delivery Date    2024-06-30

More Interfaces

Power supply/signaling contact    1 x plug-in terminal block, 6-pin

V.24 interface    1 x RJ11 socket

USB interface    1 x USB to connect auto-configuration adapter ACA21-USB

Network size – length of cable

Twisted pair (TP)    Port 1 – 6: 0 – 100 m

Multimode fiber (MM) 50/125 µm    Uplink 1: 0-5000 m, 8 dB Link Budget at 1300 nm, A=1 dB/km, 3 dB Reserve, B = 800 MHz x km \\\ Uplink 2: 0-5000 m, 8 dB Link Budget at 1300 nm, A=1 dB/km, 3 dB Reserve, B = 800 MHz x km

Multimode fiber (MM) 62.5/125 µm    Uplink 1: 0 – 4000 m, 11 dB Link Budget at 1300 nm, A = 1 dB/km, 3 dB reserve, B = 500 MHz x km \\\ Uplink 2: 0 – 4000 m, 11 dB Link Budget at 1300 nm, A = 1 dB/km, 3 dB reserve, B = 500 MHz x km

Network size – cascadibility

Line – / star topology    any

Ring structure (HIPER-Ring) quantity switches    50 (reconfiguration time < 0.3 sec.)

Power requirements

Operating Voltage    12/24/48V DC (9.6-60)V and 24V AC (18-30)V (redundant)

Power Consumption    max. 7.7 W

Power output in BTU (IT)/h    max. 26.3

Software

Switching    Disable Learning (hub functionality), Egress Broadcast Limiter per Port, Fast Aging, Flow Control (802.3X), IGMP Snooping/Querier (v1/v2/v3), Independent VLAN Learning, QoS / Port Prioritization (802.1D/p), Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, VLAN (802.1Q)

Redundancy    HIPER-Ring (Manager), HIPER-Ring (Ring Switch), Media Redundancy Protocol (MRP) (IEC62439-2) – Redundancy Client, Media Redundancy Protocol (MRP) (IEC62439-2) – Redundancy Manager, Redundant Network Coupling, RSTP 802.1D-2004 (IEC62439-1), RSTP Guards, RSTP over MRP

Management    TFTP, LLDP (802.1AB), V.24. HTTP, Traps, SNMP v1/v2/v3. Telnet

Diagnostics    Management Address Conflict Detection, Address Relearn Detection, Signal Contact, Device Status Indication, LEDs, Syslog, Duplex Mismatch Detection, RMON (1.2.3.9), Port Mirroring 1:1. Port Mirroring 8:1. System Information, Self-Tests on Cold Start, SFP Management, Switch Dump

Configuration    AutoConfiguration Adapter ACA11 Limited Support (RS20/30/40. MS20/30), Automatic Configuration Undo (roll-back), Configuration Fingerprint, BOOTP/DHCP Client with Auto-Configuration, AutoConfiguration Adapter ACA21/22 (USB), HiDiscovery, DHCP Relay with Option 82. Command Line Interface (CLI), Full-featured MIB Support, Web-based Management, Context-sensitive Help

Security    IP-based Port Security, MAC-based Port Security, Access to Management restricted by VLAN, SNMP Logging, Local User Management, Password change on first login

Time synchronisation    SNTP Client, SNTP Server

Industrial Profiles    EtherNet/IP Protocol, PROFINET IO Protocol

Miscellaneous    Manual Cable Crossing

Presettings    Standard

Ambient conditions

Operating temperature    0-+60 °C

Minimum Storage Temperature    -40-+70 °C

Relative humidity (non-condensing)    10-95 %

Mechanical construction

Dimensions (WxHxD)    74 mm x 131 mm x 111 mm

Weight    410 g

Mount Type    DIN Rail

IP Protection Rating    IP20

Mechanical stability

IEC 60068-2-6 vibration    1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min

IEC 60068-2-27 shock    15 g, 11 ms duration, 18 shocks

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD)    6 kV contact discharge, 8 kV air discharge

EN 61000-4-3 electromagnetic field    10 V/m (80-1000 MHz)

EN 61000-4-4 fast transients (burst)    2 kV power line, 1 kV data line

EN 61000-4-5 surge voltage    power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line

EN 61000-4-6 Conducted Immunity    3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz)

EMC emitted immunity

RS20-0800M4M4SDAE

EN 55032    EN 55032 Class A

FCC CFR47 Part 15    FCC 47CFR Part 15. Class A

Approvals

Basis Standard    CE, FCC, EN61131

Safety of industrial control equipment    cUL 508

Hazardous locations    cULus ISA12.12.01 class1 div.2 (cUL 1604 class1 div.2)

Reliability

Guarantee    60 months (please refer to the “”terms of guarantee or detailed information)

Scope of delivery and accessories

Accessories    Rail Power Supply RPS30. RPS60. RPS90 or RPS120. Terminal Cable, Network Management Software Industrial HiVision, Auto configuration adapter (ACA21-USB), 19”-DIN rail adapter

Scope of delivery    Device, terminal block, General safety instructions
