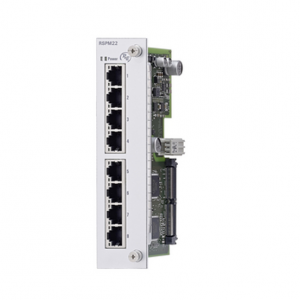

Hirschmann RSPM20-4T14T1SZ9HHS9 Switch RSPM20-4T14T1SZ9HHS9
Product: RSPM20-4T14T1SZ9HHS9
Configurator: RSPM20-4T14T1SZ9HHS9
Configurator Description
By adding this simple-to-install RSPM media modules, a basic RSPE switch with eight Fast Ethernet ports and four combo ports can be quickly extended to
provide up to 28 ports.
Technical Specifications
Product description
Description Fast Ethernet media module for RSPE Switches
Configurator Part Number 942106999
Port Type and Quantity 8 Fast Ethernet ports in total: 8 x RJ45
Network size – length of cable
RSPM20-4T14T1SZ9HHS9
Twisted pair (TP) 0-100 m
Single mode fiber (SM) 9/125 µm see SFP modules
Single mode fiber (LH) 9/125 µm (long haul transceiver) see SFP modules
Multimode fiber (MM) 50/125 µm see SFP modules
Multimode fiber (MM) 62.5/125 µm see SFP modules
Power requirements
Operating Voltage power supply via RSPE32-xx or RSPE37-xx switch variant
Power Consumption 4 W
Ambient conditions
Operating temperature 0-+60 °C
Minimum Storage Temperature-40-+70 °C
Relative humidity (non-condensing) 10-95 %
Mechanical construction
Weight 140 g
IP Protection Rating IP20
Mechanical stability
IEC 60068-2-6 vibration 1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock 15 g, 11 ms duration, 18 shocks
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD) 8 kV contact discharge, 15 kV air discharge
EN 61000-4-3 electromagnetic field 35 V/m (80-2700 MHz); 1 kHz, 80% AM
EN 61000-4-4 fast transients (burst) 4 kV power line, 4 kV data line
EN 61000-4-5 surge voltage power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line IEEE1613: power line 5 kV (line/earth)
EN 61000-4-6 Conducted Immunity 3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz)
EN 61000-4-16 mains frequency voltage 30 V, 50 Hz continous; 300 V, 50 Hz 1 s
EMC emitted immunity
EN 55022
EN 55032 Class A
FCC CFR47 Part 15
FCC 47CFR Part 15. Class A
