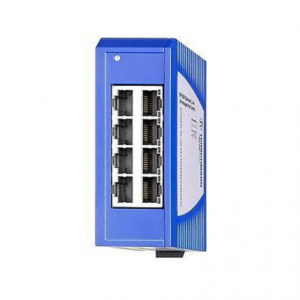

HIRSCHMANN BELDEN SPIDER-PL-20-07T1M2M299TY9HHHH / SPIDERPL2007T1M2M299TY9HHHH

BELDEN SPIDER-PL-20-07T1M2M299TY9HHHH / SPIDERPL2007T1M2M299TY9HHHH

Reliably transmit large amounts of data across any distance with the SPIDER III family of industrial Ethernet switches.

These unmanaged switches have plug-and-play capabilities to allow for quick installation and startup – without any tools – to maximize uptime

Product description

Type    SPR20-7TX/2FM-EEC (Product code: SPIDER-PL-20-07T1M2M299TWVHHHH )

Description    Unmanaged, Industrial ETHERNET Rail Switch, fanless design, store and forward switching mode, USB interface for configuration , Fast Ethernet

Part Number    942335030

Port Type and Quantity    7 x 10/100BASE-TX, TP cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity , 2 x 100BASE-FX, MM cable, SC sockets

More Interfaces

Power supply/signaling contact    1 x plug-in terminal block, 6-pin

USB interface    1 x USB for configuration

Network size – length of cable

Twisted pair (TP)    0 – 100 m

Multimode fiber (MM) 50/125 µm    0 – 5000 m (Link Budget at 1310 nm = 0 – 8 dB; A=1 dB/km; BLP = 800 MHz*km)

Multimode fiber (MM) 62.5/125 µm    0 – 4000 m (Link Budget at 1300 nm = 0 – 11 db; A = 1 dB/km; BLP = 500 MHz*km)

Network size – cascadibility

Line – / star topology    any

Power requirements

Current consumption at 24 V DC    Max. 280 mA

Operating Voltage    12/24 V DC (9.6 – 32 V DC), redundant

Power Consumption    Max. 6.9 W

Power output in BTU (IT)/h    23.7

Diagnostics features

Diagnostic functions    LEDs (power, link status, data, data rate)

SPIDER-PL-20-07T1M2M299TY9HHHH

Software

Switching    Ingress Storm Protection, Jumbo Frames, QoS / Port Prioritization (802.1D/p)

Ambient conditions

MTBF    852.056 h (Telcordia)

MTBF (Telcordia SR-332 Issue 3) @ 25°C    2 621 190 h

Operating temperature    -40-+65 °C

Minimum Storage Temperature    -40-+85 °C

Relative humidity (non-condensing)    10 – 95 %

Mechanical construction

Dimensions (WxHxD)    56 x 135 x 117 mm (w/o terminal block)

Weight    510 g

Mount Type    DIN rail

IP Protection Rating    IP40 metal housing

Mechanical stability

IEC 60068-2-6 vibration    3.5 mm, 5–8.4 Hz, 10 cycles, 1 octave/min 1 g, 8.4–150 Hz, 10 cycles, 1 octave/min

IEC 60068-2-27 shock    15 g, 11 ms duration, 18 shocks

EMC emitted immunity

EN 55022    EN 55032 Class A

FCC CFR47 Part 15    FCC 47CFR Part 15. Class A

Approvals

Basis Standard    CE, FCC, EN61131

Safety of industrial control equipment    cUL 61010-1/61010-2-201

Hazardous locations    ISA 12.12.01 Class 1 Div. 2; ATEX Zone 2

Shipbuilding    DNVGL

Railway norm    EN50121-4

Transportation    E1

Reliability

Guarantee    60 months (please refer to the terms of guarantee for detailed information)

Scope of delivery and accessories

Accessories    Rail Power Supply RPS 30/80 EEC/120 EEC (CC), Wall mounting plate for DIN rail mounting (width 40/70 mm)

Scope of delivery    Device, terminal block, safety instruction
