Beckhoff CP6202-1047-0050 – An industrial-grade embedded panel computer.
Introduction

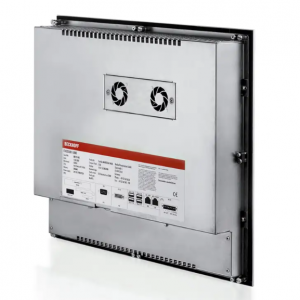

The Beckhoff CP6202-1047-0050 is a premium, industrial-grade built-in Panel PC engineered by Beckhoff Automation.
Melding high-performance computing capabilities with a durable, integrated display interface, this unit serves as a core control and visualization system for demanding automated environments.
Specifically structured for seamless control cabinet front-panel installation, it bridges the gap between state-of-the-art Industrial PC (IPC) technology and robust Human-Machine Interface (HMI) hardware.
Equipped with highly integrated motherboard architectures, scalable processing power, and exceptional thermal design, the CP6202-1047-0050 is fully optimized to run complex control logic, data acquisition, and intensive HMI applications concurrently through Beckhoff’s TwinCAT automation software.
Unique Product Description
The Beckhoff CP6202-1047-0050 features an iconic, sleek industrial design utilizing a high-grade aluminum front panel and a robust sheet-steel rear cover housing.
Unlike standard consumer interfaces, this specific variant stands out by incorporating high-performance computing architecture tailored to withstand continuous shock, intense vibration, and severe temperature fluctuations common to factory floors.
Its unique 15-inch front panel boasts an IP65 protection rating against dust and liquid ingress, making it an exceptionally reliable focal point for operator interaction and high-speed edge computing.
Technical Parameter Table
| Parameter Section | Feature / Specification | Technical Details |
| Display & HMI | Screen Size | 15-inch TFT Display |
| Front Panel Construction | High-quality aluminum front plate, IP65 protection rating | |
| Touch Technology | Durable, industrial-grade touchscreen | |
| Computing Core | Processor Configuration | High-performance scalable Intel® CPU architecture (1047 series) |
| Memory Slots / RAM | Expandable high-speed DDR memory options | |
| Storage Drive Interface | Slots for CFast cards, 2½-inch SATA HDD, or Solid-State Drives (SSD) | |
| Interfaces & Expansions | Network Ports | Dual Gigabit Ethernet interfaces (RJ45) |
| Expansion Slots | Multi-slot expansion compatibility (PCI/PCIe or customer-specific setups) | |
| Peripheral Connections | Integrated high-speed USB ports, DVI/DisplayPort outputs | |
| Power & Electrical | Input Supply Voltage | $24\text{ V DC}$ standard industrial power supply |
| Backup System | Optional integrated Uninterruptible Power Supply (UPS) | |
| Physical & Environmental | Operating Temperature | $0^\circ\text{C}$ to $55^\circ\text{C}$ ambient operating envelope |
| Cooling Mechanics | Internal dual ball-bearing fans with speed-controlled thermal management | |
| Certification Standards | CE, UL certified |
Product Advantages and Features
All-in-One Integration: Seamlessly merges a brilliant 15-inch display panel with a fully functional 3½-inch industrial motherboard into a single compact, space-saving enclosure.
Industrial Ruggedness: Features an IP65-rated aluminum front face resistant to oil, moisture, and dust, combined with an IP20-rated sheet-steel rear chassis.
Intelligent Thermal Engineering: Equipped with a dual ball-bearing speed-controlled fan cartridge that dynamically adjusts to system loads, optimizing component lifespan.
Non-Volatile Security: Includes built-in NOVRAM options for fail-safe data retention, keeping critical system variables safe in the event of an abrupt power failure.
Software-Optimized Performance: Fully tailored to maximize the speed and deterministic execution of TwinCAT software suites under Windows 10 IoT Enterprise or legacy embedded systems.
Application Cases
Automotive Production Lines: Acts as the primary master control terminal for robotic welding and assembly cells, processing fieldbus communications while rendering real-time 3D telemetry.
Packaging and Processing Machinery: Provides rapid touch-response manipulation and synchronized axis tracking control for multi-lane packaging and boxing machines.
Renewable Energy Management: Monitors wind turbine and solar farm substations, logging environmental data and system power factors across wide ambient temperature fluctuations.
Chemical & Pharmaceutical Plant HMIs: Offers a cleanable, sealed front panel used within recipe management, batch control, and process engineering environments where hygiene and moisture resistance are required.
Installation and Maintenance
Installation Guide
Cut-out Preparation: Prepare a precise rectangular aperture in the control cabinet door or console panel matching the specified mechanical dimensions of the CP6202 front plate.
Mounting: Insert the unit from the front. Secure the Panel PC using the integrated clamping levers tightened carefully from the rear to ensure an even seal and achieve the IP65 rating against the mounting frame.
Clearance Note: Leave a minimum clearance of at least $2\text{ cm}$ behind the rear speed-regulated fan cartridge to ensure unhindered airflow and heat dissipation.
Wiring: Connect a clean, regulated $24\text{ V DC}$ power feed and implement proper ch
