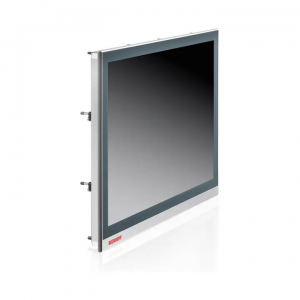

Beckhoff CP2913-000 Multi-Touch Display

Beckhoff CP2913-000 Multi-Touch Display

CP29xx | Multi-touch built-in Control Panel

Balance between latest PC technology and long-term availability of control components

Modern Control Panel technology doesn’t stop with the selection of the touch technology, which forms the basis of the operation of a machine or plant.

The transmission of the image and touch signals, combined with the power supply or other digital signals, must work perfectly and continuously, both mechanically and electrically, and over long distances in the industrial environment.

In order to reliably ensure this, Beckhoff installs Panel electronics that it develops and manufactures itself at the production location in Verl.

Product variants    Transmission technology    Product status

CP29xx-0010    CP-Link 4    regular delivery

CP29xx-0000    DVI/USB Extended    regular delivery

Technical data    CP65xx-xxxx-0090    Options

Device type    Built-in Panel PC

Housing    7 slot ATX housing

Installation    pull-out clamping levers for fast installation without loose parts

Protection rating    front side IP65. rear side IP20

Operating temperature    0…55°C

Display size/resolution    12″ 800 x 600. 15″ 1024 x 768 or 19″ 1280 x 1024

Touch screen    single-finger touch screen or touch pad

Front keyboard    alphanumerical or numerical PC keyboard in US layout or only function keys, each variant with 10 PLC special keys and LEDs or front laminate without keys, only display

Processor    Intel® Celeron® G3900 2.8 GHz, 2 cores (TC2. TC3: 50)    up to Intel® Core™ i7 7700 3.6 GHz, 4 cores (TC3: 80)

Motherboard    ATX motherboard for 6th/7th generation Intel® Celeron®, Pentium®, Core™ i3/i5/i7

PCIe® slots    2 x PCIe® x1. 2 x PCIe® x4. 1 x PCIe® x16. 2 x PCI™ for up to 190 mm long plug-in cards

Memory    4 GB DDR4 RAM    up to 64 GB DDR4 RAM

Graphic    integrated in the processor

Ethernet    2 x 100/1000BASE-T on-board

RAID    on-board SATA RAID 1 controller

Hard disks/flash    hard disk, 3½-inch, 1 TB    hard disk up to 4 TB, SSD, CFast

Disk drive    –    multi DVD

Interfaces    4 x USB 3.0. 2 x DVI, 1 x DisplayPort, 1 x RS232. PS/2 keyboard and mouse    8 x USB 2.0. 3 x RS232

Power supply    100…240 V AC    24 V DC, UPS

Operating system    –    Windows 10 IoT Enterprise
