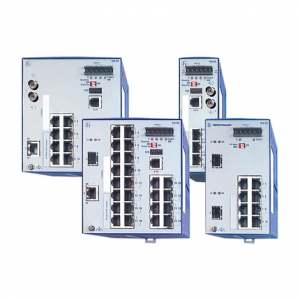

Hirschmann RS40 Rail Switch RS40-0009CCCCSDAE
Hirschmann RS40 Rail Switch RS40-0009CCCCSDAE
Product: RS40-0009CCCCSDAEHHXX.X.
Configurator: RS20/30/40 Managed Switch configurator
Configurator Description
Fast Ethernet Ports with/without PoE The RS20 compact OpenRail managed Ethernet switches can accommodate from 4 to 25 port densities and are
available with different Fast Ethernet uplink ports – all copper, or 1. 2 or 3 fiber ports. The fiber ports are available in multimode and/or singlemode. Gigabit
Ethernet Ports with/without PoE The RS30 compact OpenRail managed Ethernet switches can accommodate from 8 to 24 port densities with 2 Gigabit ports
and 8. 16 or 24 Fast Ethernet ports. The configuration includes 2 Gigabit ports with TX or SFP slots.
Technical Specifications
Product description
Description Managed Full Gigabit Ethernet industrial switch for DIN rail, store-and-forward-switching, fanless design ; Software Layer 2 Enhanced
Part Number 943935001
Port type and quantity 9 ports in total: 4 x Combo Ports (10/100/1000BASE TX, RJ45 plus FE/GE-SFP slot); 5 x standard 10/100/1000BASE TX, RJ45
Product Life Cycle
Power supply/signaling
contact 1 x plug-in terminal block, 6-pin
V.24 interface 1 x RJ11 socket
USB interface 1 x USB to connect auto-configuration adapter ACA21-USB
Network size – length of cable
Twisted pair (TP) Port 1 – 9: 0 – 100 m
Single mode fiber (SM)
9/125 Port 1 – 4: cf. SFP modules M-FAST SFP or M-SFP
Single mode fiber (LH)
9/125 Port 1 – 4: cf. SFP modules M-FAST SFP or M-SFP
Multimode fiber (MM)
50/125 Port 1 – 4: cf. SFP modules M-FAST SFP or M-SFP
Multimode fiber (MM)
62.5/125 Port 1 – 4: cf. SFP modules M-FAST SFP or M-SFP
Network size – cascadibility
Line – / star topology any
Ring structure
(HIPER-Ring) qunt. Switch 50 (reconfiguration time < 0.3 sec.)
Power requirements
Operating voltage 12/24/48V DC (9.6-60)V and 24V AC (18-30)V (redundant)
Power consumption max. 20 W
Power output in Btu (IT) h max. 68
Software
RS40-0009CCCCSDAE
Switching Disable Learning (hub functionality), Egress Broadcast Limiter per Port, Fast Aging, Flow Control (802.3X), IGMP Snooping/Querier (v1/v2/v3), Independent VLAN Learning, QoS /
Port Prioritization (802.1D/p), Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, VLAN (802.1Q)
Redundancy HIPER-Ring (Manager), HIPER-Ring (Ring Switch), Media Redundancy Protocol (MRP) (IEC62439-2) – Redundancy Client, Media Redundancy Protocol (MRP) (IEC62439-2)
Redundancy Manager, Redundant Network Coupling, RSTP 802.1D-2004 (IEC62439-1), RSTP Guards, RSTP over MRP
Management TFTP, LLDP (802.1AB), V.24. HTTP, Traps, SNMP v1/v2/v3. Telnet
Diagnostics Management Address Conflict Detection, Address Relearn Detection, Signal Contact, Device Status Indication, LEDs, Syslog, Duplex Mismatch Detection, RMON (1.2.3.9), Port
Mirroring 1:1. Port Mirroring 8:1. System Information, Self-Tests on Cold Start, SFP Management, Switch Dump
Configuration
AutoConfiguration Adapter ACA11 Limited Support (RS20/30/40. MS20/30), Automatic Configuration Undo (roll-back), Configuration Fingerprint, BOOTP/DHCP Client with
Auto-Configuration, AutoConfiguration Adapter ACA21/22 (USB), HiDiscovery, DHCP Relay with Option 82. Command Line Interface (CLI), Full-featured MIB Support, Web-based
Management, Context-sensitive Help
Security IP-based Port Security, MAC-based Port Security, Access to Management restricted by VLAN, SNMP Logging, Local User Management, Password change on first login
Time synchronisation SNTP Client, SNTP Server
Industrial Profiles EtherNet/IP Protocol, PROFINET IO Protocol
Miscellaneous Manual Cable Crossing
Presettings Standard
Ambient conditions
Operating temperature 0-+60 °C
Storage/transport
temperature-40-+70 °C
Relative humidity
(non-condensing) 10-95 %
Mechanical construction
Dimensions 74 mm x 131 mm x 111 mm
Weight 530 g
Mounting DIN Rail
Protection class IP20
Mechanical stability
IEC 60068-2-6 vibration 1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock 15 g, 11 ms duration, 18 shocks
EMC interference immunity
EN 61000-4-2
electrostatic discharge 6 kV contact discharge, 8 kV air discharge
EN 61000-4-3
electromagnetic field 10 V/m (80-1000 MHz)
EN 61000-4-4 fast
transients (burst) 2 kV power line, 1 kV data line
EN 61000-4-5 surge
voltage power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
EN 61000-4-6 conducted
immunity 3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz)
EMC emitted immunity
EN 55032 EN 55032 Class A
FCC CFR47 Part 15 FCC 47CFR Part 15. Class A
