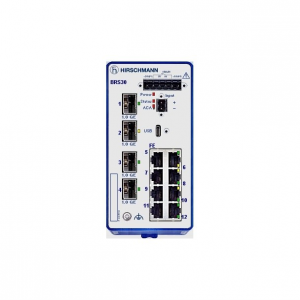

Hirschmann BRS30-24TX Industrial Rail Switch

Hirschmann BRS30-24TX Industrial Rail Switch

Product: BRS30-24TX

Configurator: BRS30-24TX

Product description

Type BRS30-24TX (Product code: BRS30-20042T2T-STCY99HHSESXX.X.XX)

Description Managed Industrial Switch for DIN Rail, fanless design Fast Ethernet, Gigabit uplink type

Part Number 942170087

Configurator Part

Number 942170999

Port Type and

Quantity 24 Ports in total: 20x 10/100BASE TX / RJ45; 4x 10/100/1000BASE TX / RJ45 ; 1. Uplink: 2 x TX (1000 Mbit/s) ; 2. Uplink: 2 x TX (1000 Mbit/s)

More Interfaces

Power

supply/signaling

contact

1 x plug-in terminal block, 6-pin

Digital Input 1 x plug-in terminal block, 2-pin

Local Management

and Device

Replacement

USB-C

Network size – length of cable

Twisted pair (TP) 0 – 100 m

Network size – cascadibility

Line – / star topology any

Power requirements

Operating Voltage 2 x 12 VDC … 24 VDC

Power Consumption 16 W

Power output in BTU

(IT)/h 55

Software

Switching

BRS30-24TX

CoS Queue Management, Egress Interface Shaping, Fast Aging, Flow Control (802.3X), Forward unknown multicast to query ports per vlan, GARP Multicast Registration Protocol

(GMRP), GARP VLAN Registration Protocol (GVRP), IGMP Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Ingress Storm Protection, Interface Trust Mode, Jumbo

Frames, Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP), Multiple VLAN Registration Protocol (MVRP), QoS / Port Prioritization (802.1D/p),

Queue-Shaping / Max. Queue Bandwidth, Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, TSN 802.1Qbv Support on interfaces 1/1 – 1/3., Unknown Multicast

Filtering, VLAN (802.1Q), Voice VLAN

Redundancy HIPER-Ring (Ring Switch), Link Aggregation with LACP, Link Backup, Media Redundancy Protocol (MRP) (IEC62439-2) – Redundancy Client, Media Redundancy Protocol (MRP)

(IEC62439-2) – Redundancy Manager, Redundant Network Coupling, RSTP 802.1D-2004 (IEC62439-1), RSTP Guards

Management Dual Software Image Support, TFTP, SFTP, SCP, LLDP (802.1AB), LLDP-MED, SSHv2. HTTP, HTTPS, IPv6 Management, Traps, SNMP v1/v2/v3. SNMPv3 Traps, Telnet

Diagnostics

Configuration Check Dialog, Copper Cable Test, Device Status Indication, Duplex Mismatch Detection, LEDs, Link Flap Detection, Link Speed and Duplex Monitoring, MAC Notification,

Management Address Conflict Detection, Overload Detection, Persistent Logging on ACA, Port Mirroring 1:1. Port Mirroring 8:1. Port Mirroring N:1. Port Mirroring N:2. Port Monitoring

with Auto-Disable, RMON (1.2.3.9), Self-Tests on Cold Start, SFP Management, Signal Contact, Switch Dump, Syslog, System Information, TCPDump

Configuration

Auto Disable, AutoConfiguration Adapter ACA21/22 (USB), Automatic Configuration Undo (roll-back), Backup config on a remote server when saving, BOOTP/DHCP Client with

Auto-Configuration, Clear config but keep IP settings, CLI script handling over ENVM at boot, CLI Scripting, Command Line Interface (CLI), Configuration Fingerprint, Context-sensitive

Help, DHCP Relay with Option 82. DHCP Server: per Port, DHCP Server: Pools per VLAN, Full-featured MIB Support, HiDiscovery, HTML5 based Management, USB-C Management

support, XML-based Configuration File

Security

Access to Management restricted by VLAN, Appropriate Use Banner, Audit Trail, Basic ACL, CLI Logging, Configurable Number of Login Attempts, Configurable Password Policy,

Denial-of-Service Prevention, Device Security Indication, DoS Prevention Drop Counter, Guest/unauthenticated VLAN, HTTPS Certificate Management, Ingress VLAN-based ACL,

Integrated Authentication Server (IAS), Local User Management, MAC-based Port Security, Multiple Privilege Levels, Password change on first login, Port-based Access Control with

802.1X, RADIUS Client, RADIUS VLAN Assignment, Remote Authentication via RADIUS, Restricted Management Access, Secure Boot, Signed Firmware Images, SNMP Logging, User

Account Locking, VLAN-based ACL

Time synchronisation 802.1AS, 802.1AS-2020. BC with Up to 8 Sync / s, Buffered Real Time Clock, PTPv2 Boundary Clock, PTPv2 Transparent Clock two-step, SNTP Client, SNTP Server

Industrial Profiles EtherNet/IP Protocol, IEC61850 Protocol (MMS Server, Switch Model), Modbus TCP, PROFINET Protocol

Miscellaneous Digital IO Management, Manual Cable Crossing, Port Power Down
