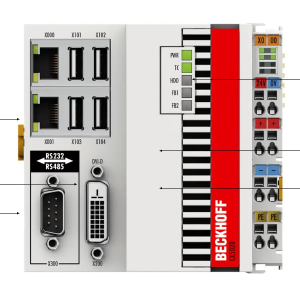

CX5020 | Embedded PC with Intel Atom® (service phase)
The CX5010 and CX5020 are Embedded PCs from the CX5000 series based on Intel Atom® processors and differ only by the CPU version.
The CX5010 has a 1.1 GHz Intel Atom® Z510 processor, while the CX5020 has a 1.6 GHz Intel Atom® Z530 processor.
Apart from the clock speed, the two processors also differ by the fact that the Z530 features hyperthreading technology, i.e.
it has two virtual CPU cores for more effective execution of software.
Depending on the installed TwinCAT runtime environment, the CX5010/CX5020 can be used for the implementation of PLC or PLC/motion control projects (with or without visualization).
CX5020-0122
Technical data CX5020
Processor Intel Atom® Z530. 1.6 GHz clock frequency
Number of cores 1
Flash memory slot for CompactFlash® card, 128 MB included (expandable)
Main memory 512 MB RAM (expandable ex factory to 1 GB)
1-second UPS integrated (1 MB on CompactFlash® card)
Interfaces 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-D, 4 x USB 2.0. 1 x optional interface
Cooling passive
Diagnostics LED 1 x power, 1 x TC status, 1 x flash access, 2 x bus status
Clock internal battery-backed clock for time and date (battery exchangeable)
Operating system Windows Embedded CE 6. Windows Embedded Standard 2009
Control software TwinCAT 2 runtime
TwinCAT 3 runtime (XAR)
I/O connection E-bus or K-bus, automatic recognition
Power supply 24 V DC (-15%/+20%)
Current supply E-bus/K-bus 2 A
Max. power consumption 13 W
Max. power consumption E-bus/K-bus 10 W (5 V/max. 2 A)
Weight approx. 575 g
Dimensions (W x H x D) 106 mm x 100 mm x 92 mm
Relative humidity 95%, no condensation
Operating temperature -25…+60°C
Storage temperature -40…+85°C
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protection rating IP20
Approvals/markings CE, UL, with CX1900-0105 ordering option: ATEX
Ex marking II 3 G Ex nA IIC T4 Gc
TwinCAT 3 platform level Performance (40); please see here for an overview of all the TwinCAT 3 platform level
Ordering information
CX5020-0100 CPU module, E-bus, no operating system, no TwinCAT
CX5020-0110 CPU module, E-bus, Microsoft Windows Embedded CE 6.0. no TwinCAT
CX5020-0111 CPU module, E-bus, Microsoft Windows Embedded CE 6.0. TwinCAT 2 PLC runtime
CX5020-0112 CPU module, E-bus, Microsoft Windows Embedded CE 6.0. TwinCAT 2 NC PTP runtime
CX5020-0115 CPU module, E-bus, Microsoft Windows Embedded CE 6.0. TwinCAT 3 runtime (XAR), no licenses included
CX5020-0120 CPU module, E-bus, Microsoft Windows Embedded Standard 2009. no TwinCAT
CX5020-0121 CPU module, E-bus, Windows Embedded Standard 2009. TwinCAT 2 PLC runtime
CX5020-0122 CPU module, E-bus, Windows Embedded Standard 2009. TwinCAT 2 NC PTP runtime
CX5020-0125 CPU module, E-bus, Microsoft Windows Embedded Standard 2009. TwinCAT 3 runtime (XAR), no licenses included
CX5020-1100 CPU module, K-bus, no operating system, no TwinCAT
CX5020-1110 CPU module, K-bus, Microsoft Windows Embedded CE 6.0. no TwinCAT
CX5020-1111 CPU module, K-bus, Microsoft Windows Embedded CE 6.0. TwinCAT 2 PLC runtime
CX5020-1112 CPU module, K-bus, Microsoft Windows Embedded CE 6.0. TwinCAT 2 NC PTP runtime
CX5020-1115 CPU module, K-bus, Microsoft Windows Embedded CE 6.0. TwinCAT 3 runtime (XAR), no licenses included
CX5020-1120 CPU module, K-bus, Microsoft Windows Embedded Standard 2009. no TwinCAT
CX5020-1121 CPU module, K-bus, Windows Embedded Standard 2009. TwinCAT 2 PLC runtime
CX5020-1122 CPU module, K-bus, Windows Embedded Standard 2009. TwinCAT 2 NC PTP runtime
CX5020-1125 CPU module, K-bus, Microsoft Windows Embedded Standard 2009. TwinCAT 3 runtime (XAR), no licenses included
