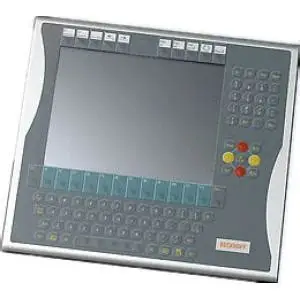

BECKHOFF CP7037-1037-0010 OPERATOR INTERFACE TOUCHSCREEN

BECKHOFF CP7037-1037-0010 OPERATOR INTERFACE TOUCHSCREEN

Installation Instructions

Please also refer to chapter  General Notes.

Transport and Unpacking

The specified storage conditions must be observed (see chapter  Technical

data).

Transport

Despite the robust design of the unit, the components are sensitive to

strong vibrations and impacts. During transport, your Control Panel should

therefore be protected from excessive mechanical stress. Therefore,

please use the original packaging.

CP70xx

Danger of damage to the unit!

Warning

If the device is transported in cold weather or is exposed to extreme

variations in temperature, make sure that moisture (condensation) does not

form on or inside the device.

Prior to operation, the unit must be allowed to slowly adjust to room

temperature. Should condensation occur, a delay time of approximately 12

hours must be allowed before the unit is switched on.

Unpacking

CP7037-1037-0010

Proceed as follows to unpack the unit:

1. Remove packaging.

2. Do not discard the original packaging. Keep it for future relocation.

3. Check the delivery for completeness by comparing it with your order.

4. Please keep the associated paperwork. It contains important

information for handling the unit.

5. Check the contents for visible shipping damage.

6. If you notice any shipping damage or inconsistencies between the

contents and your order, you should notify Beckhoff Service.

Dimensions a b t A B

CP7009 6.5“ Display 267.9 173 38 241.9 149

CP7000 10“ Display 353.8 308.3 27.5 327.6 280.7

CP7001 12“ Display 353.8 326.3 27.5 327.6 303.7

CP7002 15“ Display 426 395 28.5 399.8 367.4

M6 screw thread

Control Panel CP701x

Dimensions a b t A B

CP7019 6.5“ Display 267.9 213 38 241.9 189

CP7010 10“ Display 353.8 308.3 27.5 327.6 280.7

CP7011 12“ Display 353.8 326.3 27.5 327.6 303.7

CP7012 15“ Display 426 395 28.5 399.8 367.4

Control Panel CP702x

Dimensions a b t A B

CP7029 6.5“ Display 336 213 38 310 189

CP7020 10“ Display 406 308.3 27.5 374.8 280.7

CP7021-0000/1 12“ Display 406 308.3 27.5 374.8 280.7

CP7021-0002 12“ Display 439.8 308.3 27.5 408.6 280.7

CP7022 15“ Display 515 370.2 28.5 483.8 342.6

Control Panel CP703x

Dimensions a b t A B

CP7030 10“ Display 403.2 368.2 27.5 372.15 340.6

CP7031-0000/1 12“ Display 406 370.2 27.5 379.8 342.6

CP7031-0002 12“ Display 426 370.2 27.5 399.8 342.6

CP7037 12” Display 426 370.2 27.5 399.8 342.6

CP7032 15“ Display 483 410.2 28.5 458.8 387.6​
