CP69xx-xxxx-0010 | Economy built-in Control Panel with DVI/USB Extended interface

Balance between latest PC technology and long-term availability of control components

The built-in Control Panels of the type CP69xx-xxxx-0010 for installation in the front of a control cabinet are available with different screen sizes.

Together with the software employed, they act as the centerpiece of a variety of automation tasks, such as the control of machines, processes and logistic systems, the networking of plant parts, the data acquisition or image processing.

Single-touch technology with guaranteed long-term availability

Even if industrial applications without modern multi-touch operating scenarios are unthinkable today in the course of general digitization, there still remains a large market for single-touch applications.

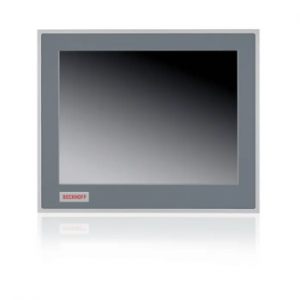

CP6907-0001-0000

These applications are frequently realized with the help of resistive touch technology. Beckhoff has been using this technology successfully in a large number of single-touch Control Panels since the end of the 1990s.

Product variants    Transmission technology    Product status

CP69xx-xxxx-0010    DVI/USB Extended 2.0    regular delivery

Technical data    CP69xx-xxxx-0010    Options

Device type    Economy built-in Control Panel with DVI/USB Extended interface

Housing    aluminum front with sheet-steel rear cover    stainless steel housing at 12″, 15″ and 19″ display without front keyboard

Display size/resolution    5.7″ 640 x 480. 6.5″ 640 x 480. 12″ 800 x 600. 15″ 1024 x 768 or 19″ 1280 x 1024

Touch screen    single-finger touch screen or touch pad

Front keyboard    alphanumerical or numerical PC keyboard in US layout or only function keys, each variant with 10 PLC special keys and LEDs or front laminate without keys, only display

Protection rating    front side IP65. rear side IP20

Connection technology    DVI-E and USB-E 2.0 enables to connect the Control Panel at a distance of up to 50 m to the PC. The DVI-E input is compatible to the standard DVI output of a PC. USB-E 2.0 transmits USB 2.0 with 480 Mbit/s.

Interfaces    RJ45 for USB-E 2.0. USB 2.0 input for the direct connection to the standard USB output of a PCs at a distance up to 5 m, DVI input, 2 x USB 2.0

Operating temperature    0…55°C

Installation    pull-out clamping levers for fast installation without loose parts

Power supply    24 V DC​
