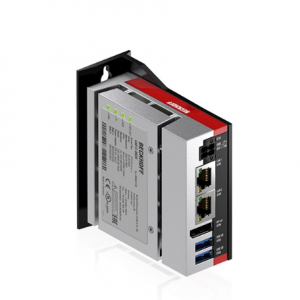

Beckhoff C6015-0010 Ultra-Compact Industrial PC
Beckhoff C6015-0010 Ultra-Compact Industrial PC
With a mounting space of just 82 x 82 x 40 mm, the C6015 Industrial PC represents Beckhoff’s most compact entry-level Industrial PC and price savings of 25% or more (depending on the configuration) place it well below the previously least expensive x86 PCs.
Due to its extremely compact size, the versatile and flexible mounting options and the impressive computing power of the Intel Atom® processors, it fits into virtually any control cabinet and machine concept.
Apart from use for a wide range of automation tasks, the C6015 is mainly suitable for use as an IoT gateway, or as an edge device. The basis for this is the full integration and compatibility of TwinCAT and EtherCAT.
Product variants Processor Product status
C6015-0040 Intel Atom®, 2 cores (TC3: 40*) or
Intel Atom®, 4 cores (TC3: 50*) regular delivery
C6015-0030 Intel Atom®, 2 cores (TC3: 40*) or
Intel Atom®, 4 cores (TC3: 50*) regular delivery
C6015-0020 Intel Atom®, 2 cores (TC3: 40*) or
Intel Atom®, 4 cores (TC3: 50*) regular delivery
C6015-0010 Intel Atom®, 1 core (TC2. TC3: 40*),
Intel Atom®, 2 cores (TC2. TC3: 40*) or
Intel Atom®, 4 cores (TC2. TC3: 50*) regular delivery
Technical data C6015-0010 Options
Device type Ultra-compact control cabinet PC
Housing aluminum zinc die-cast housing
Installation mounting sheet at the rear wall mounting sheet at the side wall or for DIN rail
Slots for hard disk/flash 1 slot for M.2 SSD
Cooling passive with single side cooling plate
Free space for air circulation 5 cm (2″) on top and bottom of the PC required
Protection rating IP20
Operating temperature 0…55°C
Dimensions (W x H x D) 82 x 82 x 40 mm (3.2″ x 3.2″ x 1.6″), without mounting plate
Processor Intel Atom® E3815. 1.46 GHz, 1 core (TC2. TC3: 40) up to Intel Atom® E3845 1.91 GHz, 4 cores (TC2. TC3: 50)
Motherboard compact motherboard for Intel Atom® E38xx
Memory 2 GB DDR3L RAM up to 4 GB DDR3L RAM ex factory
Graphic integrated in the processor
Ethernet 2 x 100/1000BASE-T on-board
Hard disks/flash 40 GB M.2 SSD up to 320 GB M.2 SSD
Interfaces 1 x USB 3.0. 1 x USB 2.0. 1 x DisplayPort
Power supply 24 V DC UPS CU81xx
Operating system Windows Embedded Compact 7. English Windows 10 IoT Enterprise, TwinCAT/BSD
Options C6015-0010
C9900-C582 processor Intel Atom® E3827. 1.75 GHz, 2 cores (TC2. TC3: 40) and memory extension to 4 GB DDR3L RAM instead of Intel Atom® E3815. 1.46 GHz (TC2. TC3: 40) and 2 GB DDR3L RAM main memory.
Memory extension requires a 64 bit operating system or only 3 GB are addressable.
With Windows Embedded Compact 7 only one core is supported. Multicore support is available with Windows 10 IoT Enterprise and TwinCAT/BSD.
C9900-C583 processor Intel Atom® E3845. 1.91 GHz, 4 cores (TC2. TC3: 50) and memory extension to 4 GB DDR3L RAM instead of Intel Atom® E3815. 1.46 GHz (TC2. TC3: 40) and 2 GB DDR3L RAM main memory.
Memory extension requires a 64 bit operating system or only 3 GB are addressable.
Operating temperature range 0…50°C
With Windows Embedded Compact 7 only one core is supported.
C6015-0010
Multicore support is available with Windows 10 IoT Enterprise and TwinCAT/BSD.
C9900-H591 80 GB M.2 SSD, 3D flash, extended temperature range, for C601x, instead of 40 GB M.2 SSD
C9900-H599 160 GB M.2 SSD, 3D flash, extended temperature range, for C601x, instead of 40 GB M.2 SSD
C9900-H675 320 GB M.2 SSD, 3D flash, extended temperature range, for C601x, instead of 40 GB M.2 SSD
C9900-Z468 Adapter DisplayPort to DVI with active level shifter, shielded, PVC, black, DisplayPort, plug, straight, IP20. 20-pin – DVI-D, plug, straight, female, IP20. 24+1-pin, 0.40 m
C9900-M664 mounting plate for C601x at the side wall, instead of plate at the rear wall
C9900-M665 mounting plate for lateral installation of the C601x; single part, not mounted
C9900-M666 mounting plate with DIN rail mounting adapter for C601x, instead of standard mounting plate
C9900-M667 mounting plate with DIN rail mounting adapter for C601x; single part, not mounted
C9900-S706 TwinCAT 2 PLC runtime for Windows Embedded Compact 7
C9900-S707 TwinCAT 2 NC PTP runtime for Windows Embedded Compact 7
C9900-S708 TwinCAT 2 NC I runtime for Windows Embedded Compact 7
Material compliance C6015-0010
CAS No. 7439-92-1. 110-71-4
REACH SVHC Lead, 1.2-Dimethoxyethane
REACH Annex XVII compliant
REACH Annex XIV compliant
SCIP No. SCIP submission in progress
POP compliant
RoHS compliant with exemption
RoHS exemption 6c: Copper alloy with a mass fraction of up to 4% lead, 7c-I:
Lead-containing electrical and electronic components in glass and ceramic materials, excluding dielectric ceramics in capacitors
China-RoHS www.beckhoff.com/china-rohs-ipc
CA Prop65 www.beckhoff.com/prop65
Disclaimer This statement and the information contained above are, to the best of our knowledge and belief, accurate, based on the information we have received from our suppliers.
This information is in line with the current standard of technology and our suppliers’ technical documentation.
The absence of the substances is not verified by Beckhoff Automation by means of analytical tests.
When addressed to our customers any information contained in this document is subject to the terms and conditions expressed in the governing customer agreement. Our general terms and conditions apply.
