LENZ EPL10200-W EPZ-10203 CANPT010W3E
Introduction
The Lenze EPL10200-W is a drive-integrated, freely programmable compact PLC system (commonly known as a Drive PLC) manufactured by Lenze.
Engineered to embed high-performance programmable logic controller functionality directly onto variable frequency drives (VFDs) and servo systems, it allows for decentralized automation control.
This unit is paired with the Lenze EPZ-10203 (CANPT010W3E) extension board, which expands its communication capabilities (specifically adding robust CAN bus interfaces) and supplements its standard physical $I/O$ count.
This combination eliminates the need for standalone central PLCs in modular machine building, significantly lowering hardware footprint, reducing wiring complexity, and minimizing network communication lag.
Technical Parameter Table
The primary technical specifications for the Lenze EPL10200-W base system equipped with the EPZ-10203 extension module include:
| Parameter Category | Specification Details |
| Brand / Manufacturer | Lenze (Germany) |
| Base Hardware Model | EPL10200-W (Drive PLC Basic Unit) |
| Extension Board Model | EPZ-10203 / Part No: CANPT010W3E |
| Input Supply Voltage | $24\text{ VDC}$ ($\pm20\%$) |
| Digital Inputs | 8x $24\text{ VDC}$ |
| Digital Outputs | 4x $24\text{ VDC}$ ($1\text{ A}$ max per channel) |
| Analog Inputs | 3x $\pm10\text{ V}$ or configuration variant ($2\text{x }\pm10\text{ V}$) |
| Analog Outputs | 1x $\pm10\text{ V}$, 1x $\pm20\text{ mA}$ |
| Integrated Communication | CAN Fieldbus, RS-485 Service Programming Port |
| Encoder Support | 9-pin D-Sub interface supporting HTL/TTL signal inputs |
| Memory Capacity | Up to $24\text{ KB}$ Application PLC RAM (V7.0 firmware) |
| Programming Software | Drive PLC Developer Studio (DDS) v1.1 or higher |
| Programming Languages | IEC 61131-3 Standard (LD, FBD, ST, SFC) |
Related Models
The Drive PLC architectures from Lenze scale based on processing capabilities, integration depth, and their designated master-drive chassis series:
Lenze EPL10200-XX: Standard base Drive PLC variant for various extension topologies.
Lenze EPL10207: Specialized integrated drive-controller configuration.
Lenze E82EV751-2C / E82EV551S4C: Frequency inverters frequently coupled with EPL-series control cards.
Lenze E82ZAFCC2XX: Companion CAN $I/O$ fieldbus functional modules utilizing physical DIP switches.
Application Cases
Decentralized Multi-Axis Packaging Machinery: Controls localized indexing, sealing operations, and film tension wrapping directly at the drive node without overloading a central manufacturing execution network.
Conveyor and Material Handling Systems: Used in sorting lines and automated storage retrieval systems (ASRS) where independent, quick-response localized sorting logic is triggered by proximity sensors.
Textile Processing Equipment: Handles intricate spinning and winding velocity configurations that necessitate low latency between processing calculation and direct motor output adjustments.
Pumping and Fan Control Stations: Manages smart PID loop processes utilizing localized analog feedback signals ($\pm10\text{ V}$/$\pm20\text{ mA}$) to maintain precise pressure gradients.
Product Advantages and Features
Integrated Architecture: Consolidating a high-speed PLC system with a physical drive unit eliminates communication latency between control logic and motor actuation profiles.
IEC 61131-3 Standardization: Engineers can program using universally understood structures including Structured Text (ST) and Ladder Diagrams (LD) inside Lenze Drive PLC Developer Studio (DDS).

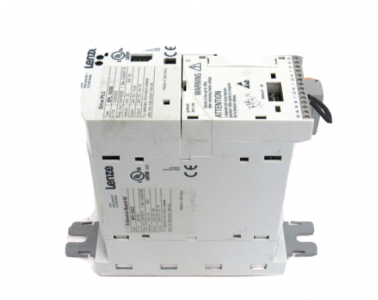

EPL10200
Enhanced Connectivity via EPZ-10203: Features integrated CAN communication layers, permitting localized machine clustering without a large master controller.
Robust Signal Handling: Accommodates physical high-speed encoder interfaces alongside standard analog and digital configurations on a highly compact frame.
Distributed Control Redundancy: If the primary supervisory factory PLC experiences an outage, localized operations governed by the EPL10200-W can safely finalize tasks or cycle into organized shutdown states.
Other Models in the Same Series
The overarching Drive PLC and global control ecosystem encompasses several historical and modern system components:
Lenze Drive PLC Series: EPL 10203. EPL 10205. EPL 10207
Lenze Extension Components: EPZ-10201. EPZ-10202. EPZ-10203 CANPT010W3E
Lenze Industrial Inverters: 8200 Vector Series, 9300 Servo Series modules capable of taking decentralized master intelligence expansions.
Installation and Maintenance
Installation Guidelines
Mounting: Ensure the base unit and the EPZ-10203 extension module are firmly fastened together before sliding them into the designated control slot of the main drive framework. Do this only when the unit is entirely powered down.
Wiring Protections: Always isolate analog and encoder cabling from heavy 3-phase AC power lines to avoid electromagnetic cross-induction. Ground the 9-pin D-Sub shield comprehensively.
Power Supply: Provide a clean, regulated $24\text{ VDC}$ power architecture. Voltage s
