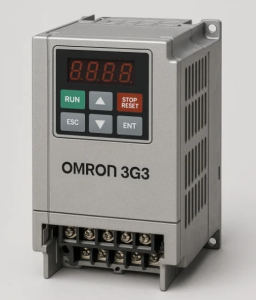

OMRON 3G3MV-P10CDT3-E RS422/485 INVERTER BOARD

OMRON 3G3MV-P10CDT3-E RS422/485 INVERTER BOARD

haracteristics

*1.The indication accuracy of K thermocouples in the -200 to 1.300°C range, T and N thermocouples at a temperature of -100°C max., and U and L

thermocouples at any temperatures is ±2°C ±1 digit max. The indication accuracy of the B thermocouple at a temperature of 400°C max.

is not specified. The indication accuracy of B thermocouples at a temperature of 400 to 800°C is ±3°C max. The indication accuracy of the R and

S thermocouples at a temperature of 200°C max. is ±3°C ±1 digit max. The indication accuracy of C/W thermocouples is (±0.3% of PV or ±3°C,

whichever is greater) ±1 digit max. The indication accuracy of PL II thermocouples is (±0.3% of PV or ±2°C, whichever is greater) ±1 digit max.

*2.Ambient temperature: -10°C to 23°C to 55°C, Voltage range: -15% to 10% of rated voltage

*3.K thermocouple at -100°C max.: ±10°C max.

*4.The unit is determined by the setting of the Integral/Derivative Time Unit parameter.

*5.External communications (RS-485) and USB-serial conversion cable communications can be used at the same time.

*6.Refer to your OMRON website for the most recent information on applicable models.

*7.Refer to information on maritime standards in Shipping Standards on page124 for compliance with Lloyd’s Standards.

*8.Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)

*9.CX-Thermo version 4.67 or higher is required for the E5CC-B linear current output type.

Indication accuracy

(at the ambient temperature of

23°C)

Thermocouple: (±0.3% of indication value or ±1°C, whichever is greater) ±1 digit max. *1

Platinum resistance thermometer: (±0.2% of indication value or ±0.8°C, whichever is greater) ±1 digit max.

Analog input: ±0.2% FS ±1 digit max.

CT input: ±5% FS ±1 digit max.

Potentiometer input: ±5% FS ±1 digit max.

Transfer output accuracy ±0.3% FS max.

Remote SP Input Type ±0.2% FS ±1 digit max.

Influence of temperature *2 Thermocouple input (R, S, B, C/W, PL II): (±1% of indication value or ±10°C, whichever is greater) ±1 digit max.

Other thermocouple input: (±1% of indication value or ±4°C, whichever is greater) ±1 digit max. *3

Platinum resistance thermometer: (±1% of indication value or ±2°C, whichever is greater) ±1 digit max.

Analog input: ±1%FS ±1 digit max.

CT input: ±5% FS ±1 digit max.

3G3MV-P10CDT3-E

Remote SP  input: ±1% FS ±1 digit max.

Influence of voltage *2

Influence of EMS.

(at EN 61326-1)

Input sampling period 50ms

Hysteresis Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or°F)

Analog input: 0.01% to 99.99% FS (in units of 0.01% FS)

Proportional band (P) Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F)

Analog input: 0.1 to 999.9% FS (in units of 0.1% FS)

Integral time (I) Standard, heating/cooling, or Position-proportional (Close): 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s)

Position-proportional (Floating): 1 to 9999 s (in units of 1 s), 0.1 to 999.9 s (in units of 0.1 s)*4

Derivative time (D) 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *4

Proportional band (P) for cooling Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F)

Analog input: 0.1 to 999.9% FS (in units of 0.1% FS)

Integral time (I) for cooling 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *4

Derivative time (D) for cooling 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *4

Control period 0.1. 0.2. 0.5. 1 to 99 s (in units of 1 s)

Manual reset value 0.0 to 100.0% (in units of 0.1%)

Alarm setting range-1999 to 9999 (decimal point position depends on input type)

Influence of signal source

resistance

Thermocouple: 0.1°C/Ω max. (100 Ω max.)

Platinum resistance thermometer: 0.1°C/Ω max. (10 Ω max.)

Insulation resistance 20 MΩ min. (at 500 VDC)

Dielectric strength 3.000 VAC, 50/60 Hz for 1 min between terminals of different charge

Vibration Malfunction 10 to 55 Hz, 20 m/s2 for 10 min each in X, Y, and Z directions

Resistance 10 to 55 Hz, 20 m/s2 for 2 hrs each in X, Y, and Z directions

Shock Malfunction 100 m/s2. 3 times each in X, Y, and Z directions

Resistance 300 m/s2. 3 times each in X, Y, and Z directions

Weight E5EC/E5EC-B: Controller: Approx. 210 g, Mounting Adapter: Approx. 4 g × 2

E5AC: Controller: Approx. 250 g, Mounting Adapter: Approx. 4 g × 2

Degree of protection Front panel: IP66. Rear case: IP20. Terminals: IP00

Memory protection Non-volatile memory (number of writes: 1.000.000 times)

Setup Tool E5EC/E5AC: CX-Thermo version 4.5 or higher

E5EC-B: CX-Thermo version 4.65 or higher *9

Setup Tool port

E5EC/E5EC-B/E5AC top panel: An E58-CIFQ2 USB-Serial Conversion Cable is used to connect to a

USB port on the computer.*5

E5EC/E5EC-B/E5AC front panel: An E58-CIFQ2 USB-Serial Conversion Cable and E58-CIFQ2-E Conversion

Cable are used together to connect to a USB port on the computer.*5

Standards Approved standards cULus: UL 61010-1/CSA C22.2 No.61010-1. Korean wireless regulations (Radio law: KC Mark) (Some

models only.) *6. Lloyd​
