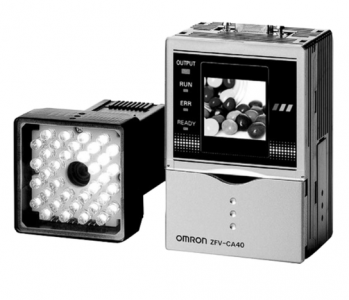

Omron ZFV-CA40 Smart Sensor Amp Unit 24VDC 0.8A

Omron ZFV-CA40 Smart Sensor Amp Unit 24VDC 0.8A

Set value: 5. Upper- and lower-limit with standby sequence

For Upper- and Lower-Limit Alarm Described Above at *2

if the upper-

• In cases 1 and 2 above, the alarm is always OFF

• In case 3. the alarm is always OFF

and lower-limit hysteresis overlaps.

*5.Set value: 5. Upper- and lower-limit alarm with standby sequence

The alarm is always OFF

if upper- and lower-limit hysteresis

overlaps.

*6.Refer to the E5@C Digital Temperature Controllers User’s Manual

(Cat. No. H174) for information on the operation of the standby

sequence.

*7.Refer to the E5@C Digital Temperature Controllers User’s Manual

(Cat. No. H174) for information on the LBA.

*8.Refer to the E5@C Digital Temperature Controllers User’s Manual

(Cat. No. H174) for information on the PV change rate alarm.

*9.When heating/cooling control is performed, the MV absolute

value upper-limit alarm functions only for the heating operation

and the MV absolute-value lower-limit alarm functions only for the

cooling operation

The indication accuracy of K thermocouples in the −200 to 1.300°C range, T and N thermocouples at a temperature of −100°C max., and U

and L thermocouples at any temperature is ±2°C ±1 digit max. The indication accuracy of B thermocouples at a temperature of 400°C max. is

not specified. The indication accuracy of B thermocouples at a temperature of 400 to 800°C is ±3°C max.

The indication accuracy of R and S thermocouples at a temperature of 200°C max. is ±3°C ±1 digit max. The indication accuracy of C/W

thermocouples is (±0.3% of PV or ±3°C, whichever is greater) ±1 digit max.

The indication accuracy of PLII thermocouples is (±0.3% of PV or ±2°C, whichever is greater) ±1 digit max.

*2.However, the precision between 0 and 4 mA for a 0 to 20 mA output is ±1% FS max.

*3.Ambient temperature: −10°C to 23°C to 55°C, Voltage range: −15% to 10% of rated voltage

*4.K thermocouple at −100°C max.: ±10°C max.

*5.The unit is determined by the setting of the Integral/Derivative Time Unit parameter.

*6.External serial communications (RS-485) and USB-Serial Conversion Cable communications can be used at the same time.

*7.Refer to your OMRON website for the most recent information on applicable models.

*8.Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)

haracteristics

*1.The indication accuracy of K thermocouples in the −200 to 1.300°C range, T and N thermocouples at a temperature of −100°C max., and U

and L thermocouples at any temperature is ±2°C ±1 digit max. The indication accuracy of B thermocouples at a temperature of 400°C max. is

not specified. The indication accuracy of B thermocouples at a temperature of 400 to 800°C is ±3°C max.

The indication accuracy of R and S thermocouples at a temperature of 200°C max. is ±3°C ±1 digit max. The indication accuracy of C/W

thermocouples is (±0.3% of PV or ±3°C, whichever is greater) ±1 digit max.

The indication accuracy of PLII thermocouples is (±0.3% of PV or ±2°C, whichever is greater) ±1 digit max.

*2.However, the precision between 0 and 4 mA for a 0 to 20 mA output is ±1% FS max.

*3.Ambient temperature: −10°C to 23°C to 55°C, Voltage range: −15% to 10% of rated voltage

*4.K thermocouple at −100°C max.: ±10°C max.

*5.The unit is determined by the setting of the Integral/Derivative Time Unit parameter.

*6.External serial communications (RS-485) and USB-Serial Conversion Cable communications can be used at the same time.

*7.Refer to your OMRON website for the most recent information on applicable models.

*8.Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)

Indication accuracy

ZFV-CA40

(at the temperature of 23°C)

Thermocouple: (±0.3 % of indication value or ±1°C, whichever is greater) ±1 digit max.*1

Platinum resistance thermometer: (±0.2 % of indication value or ±0.8°C, whichever is greater) ±1 digit max.

Analog input: ±0.2% FS ±1 digit max.

CT input: ±5% FS ±1 digit max.

Simple transfer output accuracy ±0.3% FS max.*2

Influence of temperature  *3 Thermocouple input (R, S, B, C/W, PL II): (±1% of indication value or ±10°C, whichever is greater) ±1 digit max.

Other thermocouple input: (±1% of indication value or ±4°C, whichever is greater) ±1 digit max.  *4

Platinum resistance thermometer: (±1% of indication value or ±2°C, whichever is greater) ±1 digit max.

Analog input: ±1% FS ±1 digit max.

CT input: ±5% FS ±1 digit max.

Influence of voltage  *3

Influence of EMS.

(at EN 61326-1)

Input sampling period 50 ms

Hysteresis Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F)

Analog input: 0.01% to 99.99% FS (in units of 0.01% FS)

Proportional band (P) Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F)

Analog input: 0.1% to 999.9% FS (in units of 0.1% FS)

Integral time (I) 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *5

Derivative time (D) 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *5

Proportional band (P) for cooling Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F)

Analog input: 0.1% to 999.9% FS (in units of 0.1% FS)

Integral time (I) for cooling 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *5

Derivative time (D) for cooling 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *5

Control period 0.1. 0.2. 0.5. 1 to 99 s (in units of 1 s)

Manual reset value 0.0% to 100.0% (in units of 0.1%)

Alarm setting range −1.999 to 9.999 (decimal point position depends on input type)

Influence of signal source

resistance Thermocouple: 0.1°C/Ω max. (100 Ω max.), Platinum resistance thermometer: 0.1°C/Ω max. (10 Ω max.)

Insulation resistance 20 MΩ min. (at 500 VDC)

Dielectric strength 100 to 240 VAC: 3.000 VAC, 50/60 Hz for 1 min between terminals of different charge

24 VAC/DC: 2.300 VAC, 50/60 Hz for 1 min between terminals of different charge

Vibration Malfunction 10 to 55 Hz, 20 m/s2 for 10 min each in X, Y and Z directions

Resistance 10 to 55 Hz, 20 m/s2 for 2 hr each in X, Y, and Z directions

Shock Malfunction 100 m/s2. 3 times each in X, Y, and Z directions

Resistance 300 m/s2. 3 times each in X, Y, and Z directions

Weight Controller: Approx. 80 g, Mounting Adapter: Approx. 4 g × 2

Degree of protection Front panel: IP66. Rear case: IP20. Terminals: IP00

Memory protection Non-volatile memory (number of writes: 1.000.000 times)

Setup Tool CX-Thermo version 4.62 or higher

Setup Tool port

E5GC side panel: An E58-CIFQ2 USB-Serial Conversion Cable is used to connect a USB port on the

computer. *6

E5GC bottom panel: An E58-CIFQ2 USB-Serial Conversion Cable and E58-CIFQ2-E Conversion Cable

are used together to connect a USB port on the computer. *6

Standards Approved standards cULus: UL 61010-1/CSA C22.2 No.61010-1. Korean wireless regulations (Radio law: KC Mark) (Some

models only.) *7. EAC

Conformed standards EN 61010-1 (IEC 61010-1), RCM

EMC

EMI: EN61326-1 *8

Radiated Interference Electromagnetic Field Strength: EN55011  Group 1. class A

Noise Terminal Voltage: EN55011  Group 1. class A

EMS: EN61326-1 *8

ESD Immunity: EN61000-4-2

Electromagnetic Field Immunity: EN61000-4-3

Burst Noise Immunity: EN61000-4-4

Conducted Disturbance Immunity: EN61000-4-6

Surge Immunity: EN61000-4-5

Voltage Dip/Interrupting Immunity: EN61000-4-11
