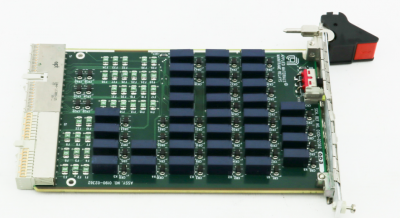

Applied Materials (AMAT) 0190-02362 | Mainframe Interlock 1 Relay Module

Applied Materials (AMAT) 0190-02362 | Mainframe Interlock 1 Relay Module

The AMAT 0190-02362 is a safety-critical Mainframe Interlock Relay Module designed for Applied Materials semiconductor manufacturing systems.

It functions as the hardware-level “gatekeeper” for system safety, managing electrical interlocks that prevent hazardous tool operations (such as opening a vacuum chamber or engaging high voltage) unless specific safety conditions are met.

Technical Parameter Table

Related Models

The 0190-02362 is typically paired with other safety and interface modules within the mainframe:

0190-02363: Mainframe Interlock 2 Relay Module (Secondary Safety Loop).

0190-02076: Water Leak Detector Board (triggers the 02362 interlock).

0190-03237: FI Serial Distribution Board.

0190-00451: Digital Input/Output Module.

Application Cases

This relay module is a standard safety component in the following platforms:

Centura & Endura Mainframes: Handling the master safety loop for gas panel isolation and vacuum chamber accessibility.

Vantage & Radiance RTP: Ensuring that lamps and high-temperature systems are hardware-disabled if a safety shroud is removed.

CMP Systems: Managing interlocks for mechanical polishing arms and high-speed wafer platens to ensure operator safety during maintenance.

Product Advantages and Features

0190-02362

Hardwired Reliability: Provides a physical disconnect for safety signals, ensuring that even in the event of a software crash, the tool remains in a safe state.

Dual-Loop Capability: Often works in tandem with the “Interlock 2” module for redundant safety coverage, meeting stringent fab safety requirements.

Diagnostic LEDs: Features front-panel or on-board indicators to help technicians quickly identify which specific safety branch is “open” or “tripped.”

Industrial Robustness: Built to withstand the vibration and electromagnetic interference (EMI) typical in high-power semiconductor cleanrooms.

Other Models in the Same Series

Applied Materials uses the 0190 series for various system-level control cards:

0190-02546: System Control Logic Board.

0190-03601: XMP Motion Controller.

0190-37833: Communication Interface Card.

Installation and Maintenance

Installation: 1. Power Down: Always shut down mainframe power before removing or installing interlock modules.

2. Address Verification: Ensure any onboard jumpers are set according to the tool’s specific hardware configuration manual.

3. Seating: Slide the card into the slot until the connectors fully engage; loose connections can cause intermittent “Interlock Faults” that stop production.

Maintenance: 1. Relay Testing: Periodically verify relay continuity using a multimeter during scheduled PMs (Preventive Maintenance).

2. Visual Inspection: Check for “pitting” or carbon buildup on relay contacts which can occur after years of high-cycle switching.

3. Alarm Logs: Regularly review the tool’s error logs for “Interlock 1” errors to preemptively replace a failing relay board before it causes unplanned downtime.

Unique Product Description

The AMAT 0190-02362 is the “Guardian” of the wafer tool. While other boards manage the process recipes and robotic precision, the 0190-02362 is dedicated entirely to the safety of the equipment and the operator.

It acts as a physical bridge for the interlock signals; if any part of the safety chain—from the E-Stop to the leak sensor—detects a problem, this module snaps open, instantly bringing the system to a safe halt.

It is a non-negotiable component for any facility maintaining Applied Materials tool integrity.
