AMAT 0100-20064 Advanced Semiconductor Control Module

AMAT 0100-20064 | Advanced Semiconductor Control Module

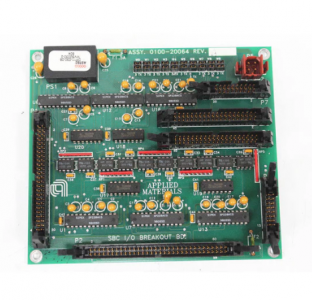

The AMAT 0100-20064 is a high-precision electronic component designed for the demanding environments of semiconductor wafer processing.

Manufactured for Applied Materials (AMAT), this module typically serves as a communication interface or a power distribution controller within the Endura, Centura, or Producer platforms.

Technical Parameter Table

Product Advantages and Features

Process Stability: Engineered to minimize electrical noise, ensuring consistent signal integrity during critical chemical vapor deposition (CVD) or etching phases.

Plug-and-Play Compatibility: Designed specifically for the Applied Materials controller architecture, reducing downtime during replacement.

High Durability: Built with industrial-grade capacitors and resistors to withstand the heat and vibration cycles of 24/7 cleanroom operations.

Precision Monitoring: Integrated diagnostic circuits allow the main system controller to monitor the module status in real-time.

Application Cases

CVD/PVD Systems: Used in the control stack of Applied Materials Endura systems to manage gas flow controllers or vacuum valve timing.

Wafer Handling Robotics: Acts as a signal bridge between the central CPU and the robotic arm controllers to ensure millimeter-perfect wafer placement.

Upgrade Cycles: Frequently utilized in “Refresh” kits for legacy Centura platforms to improve communication speeds between the UI and the hardware.

Installation and Maintenance

Installation: Ensure the system is powered down and “Locked Out, Tagged Out” (LOTO). Use an ESD-safe wrist strap, as the 0100-20064 is highly sensitive to static discharge.

Maintenance: Regularly check for thermal discoloration on the board surface. Use compressed dry air for cleaning; never use liquid solvents unless specified for semiconductor-grade electronics.

Related & Other Models in the Series

Model Number    Function

Unique Product Description

The AMAT 0100-20064 stands as a cornerstone of reliability in the semiconductor supply chain.

While many generic modules struggle with the electromagnetic interference found in plasma-rich environments, this authentic AMAT component is hardened specifically for high-vacuum applications.

Choosing the 0100-20064 ensures that your fabrication line maintains the highest yield rates by eliminating the “ghost errors” often associated with non-OEM interface hardware.
