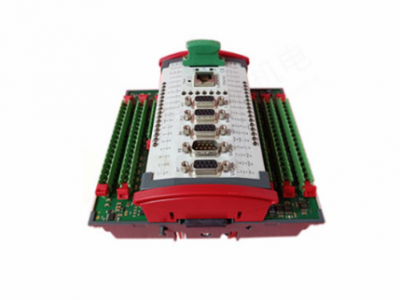

MOOG D136-001-007 high-performance Digital Control Module
MOOG D136-001-007 is a high-performance Digital Control Module, specifically known as the Moog Servo Controller (MSC I).
Part of the M3000® automation system, it is designed for the fast and precise closed-loop control of hydraulic and electrical actuators.
Unlike traditional analog controllers, the D136-001-007 offers a programmable, digital environment that provides flexibility for complex industrial motion tasks.
Technical Parameter Table
| Parameter | Specification |
| Processor | 32-bit PowerPC RISC with Floating Point Unit |
| Memory | 4 MB RAM / 4 MB Flash EEPROM (10-year data retention) |
| Supply Voltage | 24 V DC (Range: 18–32 V DC) |
| Analog Inputs | 8 Channels (16-bit, configurable: ±10V, ±10mA, 4–20mA) |
| Analog Outputs | 2 Channels (16-bit, ±10V, ±10mA, ±50mA, or 4–20mA) |
| Digital I/O | 8 Channels (Individually configurable as Input or Output) |
| Interfaces | Ethernet (10BaseT), 2x CAN, Profibus-DP Slave |
| Sensor Interfaces | 2 (Configurable for Incremental Encoder or SSI) |
| Cycle Time | From 400 µs (fast closed-loop control) |
| Protection Class | IP20 |
| Mounting | DIN Rail (NS 35/7.5) |
Related Models
The D136 series consists of various modules tailored to specific communication protocols and I/O counts:
D136-001-008: Standard MSC without the Profibus-DP interface.
D136-002-001: MSC II with EtherCAT Master interface.
D136-002-002: MSC II with Profibus-DP slave and expanded sensor interfaces.
D136-005-001: Ruggedized version (MSC-R) with IP67 protection for harsh environments.
Application Cases
Power Generation: Precise control of turbine steam valves and fuel regulation.
Metal Forming: High-speed control for hydraulic presses and synchronized bending machines.
Testing & Simulation: Flight simulator motion platforms and automotive crash-test sleds requiring high-dynamic response.
Oil & Gas: Control of drilling equipment and subsea actuator systems.
Product Advantages and Features
High Dynamics: Cycle times as low as 400 µs allow for extremely responsive axis control.
Flexible Programming: Uses MACS (Moog Axis Control Software) based on IEC 61131. allowing users to define custom control structures.
Robust Protection: Built-in overvoltage protection (±36 V) and short-circuit protection for all I/O.
Scalability: Can be expanded via the E-Bus side connector to add up to 7 additional M3000 series modules.
All-in-One: Integrates PLC functionality and motion control into a single compact unit.
Installation and Maintenance
D136-001-007
Installation
Mounting: Clip the module onto a standard 35mm DIN rail. Ensure at least 20mm of clearance above and below for ventilation.
Wiring: Use plug-in terminal strips (e.g., Moog VK055-018). Ensure the 24V supply is a SELV (Safety Extra-Low Voltage) source.
Grounding: Ensure the DIN rail is properly grounded to the cabinet frame to minimize EMC interference.
Maintenance
LED Diagnostics: Monitor the “OutEN” (Outputs Enabled) and status LEDs for fault detection.
Firmware: Updates can be performed via the Ethernet interface using the MACS software.
Environment: Periodically check for dust accumulation; while the internal memory is non-volatile, ensure the operating temperature stays within +5°C to +55°C.
Unique Product Description
The MOOG D136-001-007 acts as the “brain” of high-end hydraulic systems.
While many controllers struggle with the non-linearities of fluid power, the D136 uses its 32-bit PowerPC architecture to execute complex mathematical models in real-time.
It effectively bridges the gap between high-level factory automation (via Profibus-DP) and the gritty, high-force world of hydraulic actuators.
