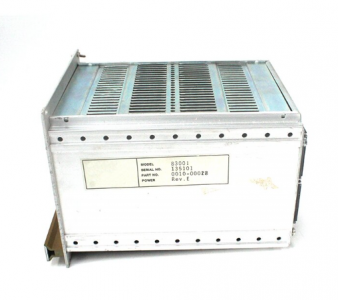

AMAT 0010-00028 Power Supply Module
AMAT 0010-00028 is a specialized 15 Volt DC Power Supply Module specifically engineered for Applied Materials 8300 Series semiconductor manufacturing platforms.
As a core power conversion component, it provides the regulated low-voltage DC current necessary to drive the tool’s sensitive control logic, sensor arrays, and low-power automation subsystems.
Technical Parameter Table
| Parameter | Specification |
| Part Number | 0010-00028 |
| Manufacturer | Applied Materials (AMAT) |
| System Compatibility | AMAT 8300 / 8300M Series |
| Output Voltage | +15V DC (Regulated) |
| Product Type | Power Supply Assembly / Module |
| Input Requirement | Standard Tool AC Distribution Line |
| Form Factor | Modular Chassis-Mount |
| Weight | ~1.85 kg |
Related Models
The 0010-00028 is often found in the same Power Distribution Assembly (PDA) or rack as these components:
0010-00017: Ion TC/AC Control Module (Model 8300M).
0010-00015: AC Outlet System Controller.
0010-00032: Turbo Control Interface Assembly.
0010-00033: VME System Controller (Basic).
Application Cases
In the AMAT 8300 architecture, this 15V module serves several critical functions:
Sensor Powering: Providing the stable reference voltage for Thermocouple (TC) gauges and ion gauges used for vacuum monitoring.
Logic Gates: Supplying secondary power to various PCB assemblies that manage the tool’s internal “handshake” signals.
8300M Maintenance: Acting as a drop-in replacement part for aging power systems in 200mm fabrication lines to prevent tool-wide crashes caused by voltage sagging.
0010-00028
Product Advantages and Features
Precision Regulation: Designed with high noise rejection to ensure that sensitive analog measurements (like vacuum pressure) are not distorted by electrical ripple.
Legacy System Optimization: Specifically tuned for the electrical load profiles of the 8300 series, ensuring longer life cycles than generic industrial power supplies.
Plug-and-Play Integration: Features standardized AMAT-coded connectors to prevent wiring errors during field replacement.
Robust Thermal Design: Engineered to operate within the dense, high-heat electronics cabinets of a semiconductor tool.
Other Models in the Same Series
The 0010 series represents early-to-mid generation assembly components for AMAT:
0010-00021: Related system interface module.
0010-00040: Blade Drive Assembly (Robot control hardware).
0010-07213: ESC/RF Assembly (300mm transition modules).
