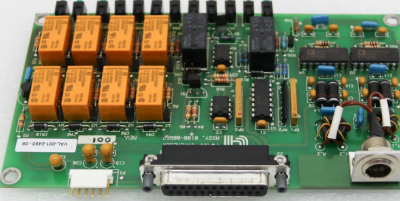

AMAT 0100-09225 TC AMP/INTERLOCK PCB

AMAT 0100-09225 TC AMP/INTERLOCK PCB

The AMAT 0100-09225 is a specialized Thermocouple Amplifier and Interlock Printed Circuit Board developed by Applied Materials.

It is a mission-critical component used in high-temperature wafer processing environments, such as CVD (Chemical Vapor Deposition) and Etch chambers.

This board serves a dual purpose: it amplifies low-level thermal signals from thermocouples for precise temperature monitoring and manages safety interlock loops to prevent equipment damage or hazardous conditions during thermal excursions.

Technical Parameter Table

Related Models

The 0100-09225 often operates in conjunction with these auxiliary boards and assemblies:

0100-09226: PCB ASSY, ENDPOINT WCVD.

0100-09162: Manometer Select Board.

0100-00426: MCVD Dual TC AMP Interlock Board (Alternative version).

0100-20012: Isolation Amplifier Board.

Application Cases

WCVD (Tungsten Chemical Vapor Deposition): Monitoring heater pedestal temperatures where precise thermal stability is required for film uniformity.

Etch Chamber Safety: Managing interlocks that shut down RF power if the cooling system fails or if the chamber exceeds temperature thresholds.

Legacy Tool Refurbishment: Replacing aging amplifier boards in P-5000 or Centura systems to restore signal accuracy and prevent “phantom” interlock trips.

Product Advantages and Features

High-Gain Amplification: Converts microvolt thermocouple signals into stable, noise-free inputs for the system’s Analog-to-Digital converters.

Integrated Safety Logic: Features hardware-level interlock circuitry that operates independently of software, providing a fail-safe layer of protection.

EMI Shielding: Specifically designed to operate near RF generators and high-voltage plasma environments without signal degradation.

Precision Calibration: Factory-tuned to match the standard thermal curves of semiconductor-grade thermocouples.

Other Models in the Same Series

0100-092xx Series: A range of specialized I/O and signal conditioning boards, including pneumatics distribution boards (0100-09242) and stepper motor interface boards (0100-09245).

0100-091xx Series: Primarily focused on gas panel and pressure management interfaces.

Installation and Maintenance

0100-09225

Installation

Safety First: Power down the system mainframe and perform LOTO (Lock-Out Tag-Out) procedures.

Electrostatic Safety: Always use an ESD-safe wrist strap; thermocouple amplifier circuits are highly sensitive to static discharge.

Cable Routing: Ensure thermocouple lead wires are securely tightened to the terminal blocks or D-Sub connectors to prevent signal “flutter.”

Seating: Insert the PCB into the rack firmly until the locking tabs or screws engage.

Maintenance

Calibration Checks: Periodically compare the board’s output against a handheld thermal calibrator to ensure signal accuracy.

Contact Cleaning: If temperature readings drift, clean the gold edge connectors with an approved electronic contact cleaner.

Unique Product Description

The AMAT 0100-09225 is the “thermal guardian” of the Applied Materials chamber.

By combining the delicate task of signal amplification with the rigid requirement of safety interlocking, it ensures that high-energy processes remain within their tight thermal windows.

Its robust analog design is a testament to the reliability required in 24/7 semiconductor manufacturing, where a single degree of temperature deviation can lead to a lost batch of wafers.

This board is essential for maintaining the high-yield performance of classic AMAT platforms.
