This technical guide provides an overview of the Applied Materials (AMAT) 0100-00658. a high-performance controller distribution board specifically engineered for Rapid Thermal Processing (RTP) systems.

1. Product Introduction

The AMAT 0100-00658 is a 300mm RTP Controller Distribution PCB. It serves as the primary signal and power routing hub for the Rapid Thermal Processing chamber on 300mm wafer platforms.

In RTP applications—where wafers are heated to high temperatures in seconds—this board manages the critical distribution of commands to lamp drivers, temperature sensors, and chamber interlocks, ensuring thermal uniformity and process repeatability.

2. Technical Parameter Table

3. Related Models & Same Series

The 0100-series for RTP environments includes several specialized boards that work in tandem:

0100-00663: TC Amp (Thermocouple Amplifier) Interlock PCB.

0100-00678: 300mm RTP Interlock Personnel Safety PCB.

0100-00659: Associated Signal Processing Module.

0190-series: Power supplies and lamp control cables used in the same rack.

4. Application Cases

Rapid Thermal Annealing (RTA): Managing high-speed temperature ramps for dopant activation.

Rapid Thermal Oxidation (RTO): Precise control of lamp arrays to grow thin oxide layers uniformly across the 300mm surface.

Silicide Formation: Coordinating heat cycles for metal-silicon reactions in advanced logic and memory nodes.

Vantage Platform Integration: Acting as the backbone for chamber-level diagnostics and communication within the Vantage toolset.

5. Product Advantages and Features

High-Speed Routing: Designed to handle the rapid data refresh rates required for millisecond-level temperature adjustments.

Enhanced Signal Integrity: Features multi-layer shielding to prevent interference from the high-current lamp power lines located in the same cabinet.

Robust Interlock Integration: Built-in pathways for safety signals to ensure the chamber shuts down instantly if thermal or vacuum limits are exceeded.

Precision Distribution: Ensures that timing signals reach all lamp zones simultaneously, preventing “hot spots” on the wafer.

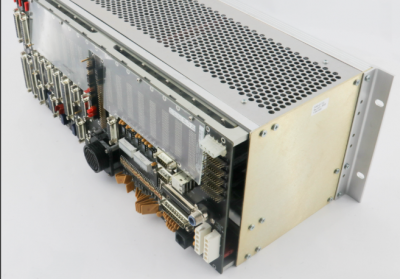

0100-00658

6. Installation and Maintenance

Installation: Ensure the Chamber Controller Rack is completely powered down. Align the edge connectors carefully with the backplane slots.

Verify that all ribbon cables and high-density connectors are seated firmly; loose connections in RTP systems can lead to catastrophic wafer breakage due to uneven heating.

Maintenance: Visually inspect the board every 6 months for signs of thermal stress (discoloration) around high-current trace areas. Clean gold contact fingers with specialized electronic contact cleaner if the board is removed for service.

Handling: As a mission-critical controller board, always use a grounded ESD wrist strap. The components on this board are highly sensitive to static discharge.

7. Unique Product Description

The AMAT 0100-00658 is the central “nerve center” for heat management in the 300mm fab environment. While standard controllers manage general tool logic, the 0100-00658 is specialized for the extreme dynamics of thermal processing.

By bridging the gap between the software-level commands and the physical lamp hardware, it provides the deterministic control necessary for the sub-10nm manufacturing processes where thermal budget management is non-negotiable.
