AMAT 0190-23509 Applied Materials Advanced DeviceNet Scanner Pro Module

AMAT 0190-23509 | Applied Materials Advanced DeviceNet Scanner Pro Module

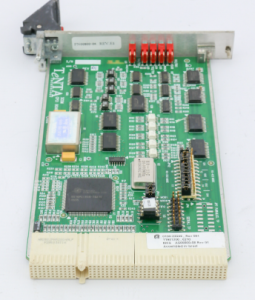

The Applied Materials (AMAT) 0190-23509 is a high-performance DeviceNet Scanner Pro interface card designed for the 3U CompactPCI (cPCI) bus architecture.

This module represents a more advanced iteration of the standard DeviceNet scanners, offering enhanced processing power and optimized firmware for the most demanding semiconductor fabrication environments.

It acts as the primary master controller for distributed I/O networks within AMAT Producer, Centura, and Endura 300mm tool mainframes.

Technical Parameter Table

Product Advantages and Features

Pro-Series Processing: Features a faster onboard processor compared to standard models, allowing for higher node counts and quicker polling cycles of critical process sensors.

Superior Noise Immunity: Specifically engineered to operate in the high-EMF (Electromagnetic Field) environments typical of RF-powered Etch and CVD chambers.

Deterministic Timing: Ensures that time-sensitive commands, such as gas valve closures and plasma ignitions, occur with microsecond repeatability.

Comprehensive Diagnostics: Front-panel LED indicators (MOD and NET) provide real-time status of the module health and network traffic integrity.

Backward Compatibility: Designed to be a drop-in replacement for earlier 0190-series scanners, requiring minimal software reconfiguration in the AMAT Control Framework.

Related Models & Same Series

The 0190-23509 is often used in high-density control racks alongside these complementary modules:

0190-37993: DeviceNet Scanner Pro (Alternate Revision)

0190-14903: 4-Port DeviceNet cPCI Interface

0190-08680: 2-Channel Standard DeviceNet Card

0190-07451: 32/16 Analog I/O CPCI Board

0190-20120: High-Density Digital I/O Module

0190-23509

Application Cases

The 0190-23509 is the “nerve center” for the following subsystems:

Gas Box Orchestration: Managing the synchronization of up to 63 DeviceNet nodes, including MFCs (Mass Flow Controllers) and pressure transducers.

Vacuum Control Chains: High-speed interfacing with turbo pump controllers and high-vacuum gate valves.

Process Chamber Management: Collecting real-time feedback from heater pedestals and electrostatic chuck (ESC) power supplies.

Installation and Maintenance

Installation Guidelines:

Chassis Slotting: Insert the 3U card into the designated cPCI slot. Use the extraction handles to ensure a firm connection with the backplane pins.

Network Power: Verify that the 24V DC network power is present on the DeviceNet trunk before initializing the software. The scanner’s transceiver relies on this external power.

Address Mapping: Ensure the Scanner’s MAC ID (usually set via software) matches the configuration in the tool’s equipment manager.

Maintenance Tips:

Firmware Sync: When replacing a 0190-23509. ensure the hardware revision (e.g., Rev A/B) is compatible with the current tool software version.

Cleaning: Periodically inspect the front-panel 5-pin connector for “pin-walking” or oxidation, which can cause intermittent communication dropouts.

Thermal Check: Ensure the control cabinet’s cooling fans are functional, as “Pro” series cards generate slightly more heat due to their higher processing speeds.

Unique Product Description

The AMAT 0190-23509 DeviceNet Scanner Pro is a mission-critical component for maintaining the highest levels of tool uptime in semiconductor manufacturing.

Engineered by Applied Materials for the 3U CompactPCI architecture, this module provides the deterministic, high-speed communication required for 300mm wafer processing.

Whether you are running complex CVD recipes on a Producer GT or high-precision etching on a Centura platform, the 0190-23509 delivers unrivaled stability.

For FAB maintenance teams and global procurement specialists, the 0190-23509 is the preferred choice for system upgrades and critical spares.

Its advanced “Pro” circuitry offers enhanced reliability over standard scanners, ensuring that your gas flows, pressures, and temperatures are monitored with absolute precision.

Investing in genuine AMAT spares like the 0190-23509 protects your yield and keeps your production line operating at peak efficiency in the most demanding cleanroom environments.
