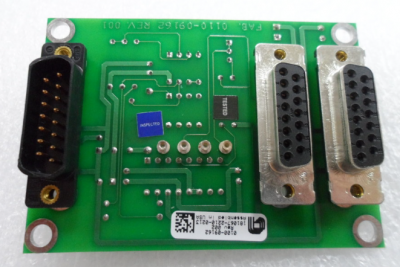

AMAT 0100-09162 H-Bridge Stepper Motor Driver PCB manufactured for Applied Materials

AMAT 0100-09162 is a specialized H-Bridge Stepper Motor Driver PCB manufactured for Applied Materials.

This high-power drive board is a foundational component of the motion control systems in legacy Precision 5000 (P5000) and early Centura 200mm platforms.

It utilizes H-bridge circuit topology to provide precise current control to bipolar stepper motors, enabling the high-torque movements required for heavy mechanical assemblies within the mainframe.

Technical Parameter Table

Related Models

The 0100-09162 is often housed in the “Driver Box” or “Electronics Tower” alongside these motion-related boards:

0100-00003: VME Stepper Drive Controller (The “Logic” board that commands this driver).

0100-00011: Chopper Drive PWB.

0100-09102: Controller Distribution Board.

0100-35048: High-current Motor Interface.

Application Cases

0100-09162

This driver board is designated for high-load mechanical axes that require “brute force” combined with positioning accuracy:

Susceptor Lift Mechanisms: Driving the motors that raise and lower the wafer pedestal inside CVD and Etch chambers.

Mainframe Robots: Managing the high-torque requirements of the rotation (Theta) and extension (R) motors on older P5000 robot bases.

Chamber Slit Valves: Operating the pneumatic-electric hybrid valves that isolate the vacuum environment during wafer transfer.

Lead Screw Actuators: Controlling vertical Z-axis movement for precision substrate alignment.

Product Advantages and Features

High Torque Efficiency: The H-bridge design allows for rapid current reversal in motor coils, maximizing torque output even at lower speeds.

Rugged Power Stage: Built with heavy-duty power transistors and oversized heat sinks to handle the thermal stress of 24/7 semiconductor cleanroom cycles.

Over-Current Protection: Includes onboard hardware safeguards to prevent the board or the motor from burning out during a mechanical jam or “stall” event.

Minimal Signal Noise: Designed with isolated signal inputs to prevent high-frequency “chatter” from the motor lines from feeding back into the sensitive VME control logic.

Other Models in the Same Series

0100-09xxx Series: This series comprises the core motion and power distribution hardware for the 8-inch wafer processing era.

0100-09161: A related driver variant often used for lower-current auxiliary motors.

Installation and Maintenance

Installation: Ensure all tool power is completely shut off. The 0100-09162 generates significant heat; ensure it is mounted in a location with adequate airflow from the rack fans.

Tighten all high-current screw terminals to the specified torque to avoid “arcing” due to loose connections.

Thermal Management: During preventative maintenance (PM), verify that the thermal paste between the power components and the heat sink has not dried out or cracked.

Troubleshooting: If a motor “hums” but does not turn, or moves only in one direction, one side of the H-bridge on the 0100-09162 likely has a blown MOSFET or transistor.

Use a multimeter to check for continuity across the drive outputs.

Unique Product Description

The AMAT 0100-09162 is the “heavy lifter” of the P5000 mainframe. While the control software provides the coordinates,

this board provides the raw electrical power required to move massive internal chamber components with sub-millimeter repeatability. For fabs specializing in power semiconductors or automotive sensors,

maintaining a healthy stock of 0100-09162 drivers is essential for preventing extended downtime on high-utilization legacy tools.
