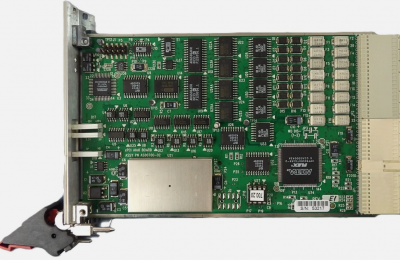

AMAT AS00700-02 Analog Input / Analog Output Board

AMAT AS00700-02 Analog Input / Analog Output Board

Introduction

The AMAT AS00700-02 is a CPCI AIAO (Analog Input / Analog Output) Board.

Operating on the CompactPCI (cPCI) bus architecture, this board serves as the primary bridge for high-precision analog signaling within a semiconductor tool.

It is specifically designed to handle the complex feedback loops required in 300mm DPS II (Decoupled Plasma Source) Etch chambers, where accurate voltage and current monitoring is essential for process consistency.

2. Technical Parameter Table

3. Related Models

The AS00700-02 is often found in the same control racks as other specialized cPCI and MKS-Tenta modules:

AMAT AS00700-08: A high-density version (32/16 channel configuration).

AMAT AS00800-02: SCOM (Serial Communication) Control Board.

AMAT 0190-22967: Associated cPCI Analog I/O assembly.

AMAT 0190-07454: 48-Channel Digital I/O (DIO) Card.

4. Application Cases

Plasma Power Monitoring: Real-time tracking of forward and reflected power signals from RF generators in DPS II Etch systems.

Chamber Pressure Control: Interfacing with MKS Baratron capacitance manometers to provide precise analog feedback for throttle valve adjustments.

Mass Flow Control (MFC): Sending setpoint voltages to and receiving flow rate feedback from gas delivery MFCs.

Temperature Oversight: Monitoring analog signals from thermocouples or pyrometers during high-temperature wafer processing.

5. Product Advantages and Features

High-Speed cPCI Interface: Leverages the robust CompactPCI backplane for rapid data throughput, reducing latency in critical safety interlocks.

Low Noise Circuitry: Features advanced EMI shielding and high-quality filtering to maintain signal integrity in electrically “noisy” plasma environments.

Deterministic I/O: Provides the synchronous analog processing needed to ensure that etch depth and uniformity are repeatable across thousands of wafers.

Industrial Durability: Engineered to meet Applied Materials’ strict MTBF requirements for 24/7 high-volume manufacturing.

6. Other Models in the Same Series

The AS00700 lineage defines the analog capability of the tool’s control system:

AS00700-01: Early-revision analog I/O configuration.

AS00700-02: The standard “Gold” version for 300mm chamber control.

AS00700-08: Later version with increased channel density for complex multi-zone heater or magnet control.

AS00700-02

7. Installation and Maintenance

Installation

ESD Protection: Handle only in an ESD-safe environment using a grounded wrist strap to protect the high-precision A/D converters.

Backplane Insertion: Align the card with the 3U cPCI guide rails. Push firmly until the connectors seat, then secure the captive thumbscrews.

Calibration: After installation, a software-based “Zero and Span” calibration may be required to align the board’s analog offsets with the tool’s sensors.

Maintenance

Visual Inspection: Check the front-panel connectors for bent pins or debris that could cause high-resistance analog errors.

Thermal Check: Ensure the rack’s cooling fans are operational, as analog accuracy can drift if the AIAO-0700 board operates above its rated thermal window.

8. Unique Product Description

The AMAT AS00700-02 is the “sensory cortex” of the Etch tool. While digital boards handle the logic of “on/off” states,

this AIAO board manages the nuanced “how much” and “how fast” variables of the process. By translating physical realities—like pressure, flow,

and power—into digital data, it enables the sub-atomic precision that defines modern semiconductor fabrication.
