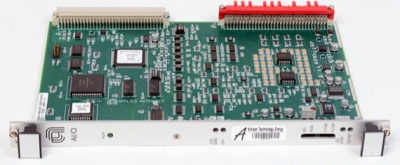

AMAT 0100-00396 high-precision control module

AMAT 0100-00396 high-precision control module

The AMAT 0100-00396 is a high-precision control module designed for seamless integration into industrial automation systems,

offering enhanced performance and reliability in demanding environments.

Operating Voltage:220 V

Current Rating:10 A

Output Frequency:50 kHz

Response Time:≤ 1 ms

Operating Temperature Range:-20°C to +85°C

Environmental Compliance:CE, UL, IEC

Connectivity Options:RS-232. Ethernet, Analog Inputs/Outputs

The AMAT 0100-00396 is a cutting-edge control module that delivers unparalleled precision and robustness, essential for advanced industrial automation applications.

Engineered with the latest semiconductor technologies, this module ensures exceptional stability and efficiency across a wide range of operating conditions.

Featuring a compact yet rugged design, the AMAT 0100-00396 is built to withstand harsh environments, making it ideal for manufacturing floors, power plants, and other industrial settings where reliability is paramount.

Equipped with versatile connectivity options, including RS-232. Ethernet, and flexible analog inputs/outputs, this module simplifies integration into existing systems, enhancing operational flexibility and productivity.

The module supports real-time data processing and communication protocols, enabling seamless interaction with supervisory control systems, thus optimizing process control and minimizing downtime.

With a temperature range from -20°C to +85°C, the AMAT 0100-00396 operates reliably in both cold and hot climates,

ensuring continuous performance regardless of environmental conditions.

Its compliance with international safety and environmental standards (CE, UL, IEC) further bolsters its suitability for global deployment.

interface

0100-00396

*Output method: rear output

*Fast Ethernet: 3 slots, each slot supports 8 ports, with optional optical and electrical options

*Gigabit Ethernet: Provides 4 1000Base SFP slots

*CONSOLE port: RS232 (RJ45)

*Alarm port: 5.08mm spacing 3-pin Phoenix wiring terminal, 250VAC/220VDC 2 A

cable

*Twisted pair cable: 100m

*Multimode fiber: 1310nm, 2km (100Mbps); 1310nm, 500m (gigabit)

*Single mode fiber: 1310nm, 0-40km; 1550nm, 0-80km

source

*Input voltage: 110-220VDC/VAC, redundant input

*Connection terminal: 5.08mm spacing 5-pin Phoenix wiring terminal

*Power:<40W

mechanical properties

*Case: Aluminum model with fanless design

*Protection level: IP30

*Installation method: 19 inch 1U rack type

*Shell size: 440 mm * 44.5 mm * 370 mm (W * H * D), as shown in the attached image

*Impact, vibration, and drop: meet the requirements of IEC61850-3 5.5 CM level

*Weight: approximately 4.3kg
