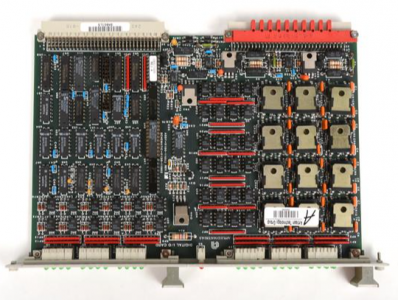

AMAT 0100-11002 Digital I/O (DI/DO) Interface Card

AMAT 0100-11002 is a specialized Digital Input/Output (DI/DO) Interface Board manufactured by Applied Materials.

It is a core electronic component used within the Applied Materials P5000 and other VMEbus-based semiconductor processing platforms.

This board serves as a vital communication link, allowing the system’s central controller to interface with external hardware like sensors, solenoid valves,

and actuators. It is designed to handle the high-reliability demands of 24/7 wafer fabrication environments.

Technical Parameter Table

Related Models

The 0100-11002 is typically part of a multi-board control rack that includes:

0100-11001: The companion Analog Output Board.

0100-09054: Analog Input Board for sensor data.

0100-20001: System Electronics Interface PCB.

0100-20173: Stepper Controller VME Module.

0110-09022: Mini AI/AO Interface Module.

Application Cases

Chamber Logic Control: Managing the digital “handshake” signals between the mainframe and individual process chambers.

Pneumatic Sequencing: Controlling the opening and closing of gas valves and slit doors during vacuum transitions.

Safety Interlocks: Processing digital signals from safety sensors to ensure the tool enters a “Safe State” if a door or vacuum breach is detected.

Robotic Synchronization: Coordinating the lift-pin movements and wafer-sensing signals during robotic transfer cycles.

Product Advantages and Features

Industrial-Grade Reliability: Engineered to withstand the electrical noise and thermal fluctuations of semiconductor cleanrooms.

VMEbus Standard: Utilizes a globally recognized modular standard, making it easier to integrate into existing industrial control racks.

Real-Time Diagnostics: On-board LEDs allow field service engineers to visually verify which I/O channels are active without external meters.

High Signal Density: Consolidates multiple digital channels into a single slot, saving valuable space in the tool’s electronics rack.

Signal Isolation: Built-in protection mechanisms to prevent overcurrent or short circuits from damaging the central CPU.

Installation and Maintenance

0100-11002

Installation

ESD Prevention: Always wear a grounded wrist strap. The board contains CMOS components that are highly sensitive to static.

Seating: Slide the board into the designated VME slot. Apply firm, even pressure to ensure the backplane connectors are fully engaged.

Fastening: Secure the front-panel captive screws to ensure a proper ground connection to the rack chassis.

Maintenance

LED Verification: During routine inspections, check for “stuck” I/O lights which may indicate a failed solenoid or sensor in the field.

Connector Cleaning: If the board is removed, inspect the gold-plated pins. Clean only with 99% anhydrous Isopropyl Alcohol (IPA) if oxidation is present.

Revision Matching: Ensure the replacement board’s revision (e.g., Rev F) is compatible with your system’s specific software load to avoid communication errors.

Unique Product Description

The AMAT 0100-11002 is the “Digital Backbone” of the P5000 processing tool.

In an industry where precision timing is the difference between a high-yield wafer and a total loss,

this DI/DO card provides the unwavering deterministic control required for high-volume manufacturing. While modern systems have moved toward more complex architectures,

the 0100-11002 remains a gold standard for reliability and simplicity in VME-based semiconductor automation.
