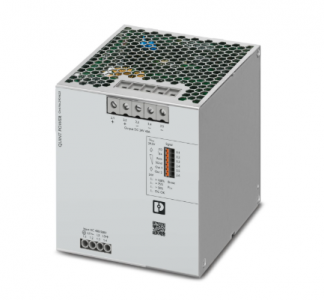

Phoenix QUINT4-PS/3AC/24DC/40 – Power supply 2904623

QUINT4-PS/3AC/24DC/40 – Power supply   2904623

Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 3-phase, output: 24 V DC/40 A

The fourth generation of the high-performance QUINT POWER power supplies ensures superior system availability by means of new functions.

Signaling thresholds and characteristic curves can be individually adjusted via the NFC interface.

The unique SFB technology and preventive function monitoring of the QUINT POWER power supply increase the availability of your application.

Control input (configurable) Rem    Output power ON/OFF (SLEEP MODE)

Default    Output power ON (>40 kΩ/24 V DC/open bridge between Rem and SGnd)

AC operation

Network type    Star network

Nominal input voltage range    3x 400 V AC … 500 V AC

2x 400 V AC … 500 V AC

Input voltage range    3x 400 V AC … 500 V AC -20 % … +10 %

2x 400 V AC … 500 V AC -10 % … +10 %

Typical national grid voltage    400 V AC

480 V AC

Voltage type of supply voltage    AC

Inrush current    typ. 1.5 A (at 25 °C)

Inrush current integral (I2t)    < 0.06 A2s

Inrush current limitation    1.5 A (after 1 ms)

AC frequency range    50 Hz … 60 Hz -10 % … +10 %

Frequency range (fN)    50 Hz … 60 Hz -10 % … +10 %

Mains buffering time    typ. 28 ms (3x 400 V AC)

typ. 28 ms (3x 480 V AC)

Current consumption    3x 1.8 A (400 V AC)

3x 1.5 A (480 V AC)

2x 3 A (400 V AC)

2x 2.5 A (480 V AC)

3x 1.5 A (500 V AC)

2x 2.4 A (500 V AC)

Nominal power consumption    1217 VA

Protective circuit    Transient surge protection; Varistor, gas-filled surge arrester

Power factor (cos phi)    0.95

Switch-on time    < 1 s

Typical response time    300 ms (from SLEEP MODE)

Recommended breaker for input protection    3x 4 A … 20 A (Characteristic B, C, D, K or comparable)

Recommended fuse for input protection    ≥ 300 V AC

Discharge current to PE    < 3.5 mA

1 mA (550 V AC, 60 Hz)

DC operation

2904623

Nominal input voltage range    ± 260 V DC … 300 V DC

Input voltage range    ± 260 V DC … 300 V DC -13 % … +30 %

520 V DC … 600 V DC -13 % … +30 % (mid-point earthed)

Voltage type of supply voltage    DC

Current consumption    2.2 A (±260 V DC)

1.9 A (±300 V DC)

Nominal power consumption    1217 VA

Recommended breaker for input protection    1x 6 A (10 x 38 mm, 30 kA L/R = 2 ms)

Recommended fuse for input protection    ≥ 1000 V DC

Efficiency    typ. 95.7 % (400 V AC)

typ. 95.7 % (480 V AC)

Nominal output voltage    24 V DC

Setting range of the output voltage (USet)    24 V DC … 29.5 V DC (constant capacity)

Nominal output current (IN)    40 A

Static Boost (IStat.Boost)    45 A

Dynamic Boost (IDyn.Boost)    60 A (5 s)

Selective Fuse Breaking (ISFB)    215 A (15 ms)

Magnetic circuit breaker tripping    A1…A40 / B2…B25 / C1…C13 / Z1…Z16

Derating    > 60 °C … 70 °C (2.5 %/K)

Feedback voltage resistance    ≤ 35 V DC

Protection against overvoltage at the output (OVP)    ≤ 32 V DC

Control deviation    < 0.5 % (Static load change 10 % … 90 %)

< 3 % (Dynamic load change 10 % … 90 %, (10 Hz))

< 0.25 % (change in input voltage ±10 %)

Residual ripple    < 50 mVPP (with nominal values)

Short-circuit-proof    yes

No-load proof    yes

Output power    960 W

1080 W

1440 W

Maximum no-load power dissipation    < 5 W (400 V AC)

< 5 W (480 V AC)

Power loss nominal load max.    < 45 W (400 V AC)

< 45 W (480 V AC)

Power dissipation SLEEP MODE    < 2 W (400 V AC)

< 2 W (480 V AC)

Crest factor    typ. 1.6 (400 V AC)

typ. 1.9 (480 V AC)

Rise time    < 1 s (UOut = 10 % … 90 %)

Connection in parallel    yes, for redundancy and increased capacity

Connection in series    yes

Fuse protection (secondary side)    electronic

thermal-magnetic

thermal

Signal

Signal ground SGnd    Reference potential for Out1. Out2. and Rem

Signal Out 1 (configurable)

Digital    24 V DC 20 mA

Default    24 V DC 20 mA 24 V DC for UOut > 0.9 x USet

Signal Out 2 (configurable)

Digital    24 V DC 20 mA

Analog    4 mA … 20 mA ±5 % (Load ≤400 Ω)

Default    24 V DC 20 mA 24 V DC for POut < PN

Signal relay 13/14 (configurable)

Default    closed (Uout > 0.9 USet)

Digital    24 V DC 1 A

30 V AC/DC 0.5 A

Item number    2904623

Packing unit    1 pc

Minimum order quantity    1 pc

Sales key    CM10

Product key    CMPI33

GTIN    4055626356105

Weight per piece (including packing)    2.811.6 g

Weight per piece (excluding packing)    2.422 g

Customs tariff number    85044095

Country of origin    TH

Number of phases    3

Insulation voltage input/output    4 kV AC (type test)

2.4 kV AC (routine test)

Insulation voltage output / PE    0.5 kV DC (type test)

0.5 kV DC (routine test)

Insulation voltage input / PE    3.5 kV AC (type test)

2.4 kV AC (routine test)

Switching frequency    32.00 kHz … 100.00 kHz (Auxiliary converter stage)

55.00 kHz … 300.00 kHz (Main converter stage)

25.00 kHz … 500.00 kHz (PFC stage)
