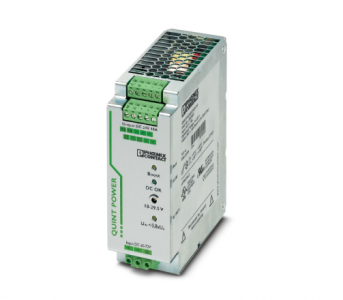

Phoenix 2905011 QUINT-PS/60-72DC/24DC/10/CO – DC/DC converter, protective coating

QUINT-PS/60-72DC/24DC/10/CO – DC/DC converter, protective coating

2905011

Primary-switched QUINT DC/DC converter with wide range input for DIN rail mounting with SFB (Selective Fuse Breaking) technology, input: 60-72 V DC, output 24 V DC / 10 A

QUINT DC/DC converter with maximum functionality.

DC/DC converters alter the voltage level, regenerate the voltage at the end of long cables or enable the creation of independent supply systems by means of electrical isolation.

QUINT DC/DC converters magnetically and therefore quickly trip circuit breakers with six times the nominal current, for selective and therefore cost-effective system protection.

In addition, the high system availability is ensured by preventive function monitoring which reports critical operating states before errors can occur.

DC operation

Nominal input voltage range    60 V DC … 72 V DC

Input voltage range    42 V DC … 96 V DC

Wide-range input    yes

Input voltage range DC    42 V DC … 96 V DC

Voltage type of supply voltage    DC

Inrush current    < 9 A (typical)

Inrush current integral (I2t)    0.64 A2s

Mains buffering time    typ. 10 ms (60 V DC)

Current consumption    5.6 A (60 V DC)

4.7 A (72 V DC)

Reverse polarity protection    , ≤ 30 V DC

Nominal power consumption    268 VA

Protective circuit    Transient surge protection; Varistor

Input fuse    10 A 150 V DC (internal (device protection))

Efficiency    > 91 % (UIN 60 V DC / UOUT 24 V DC)

> 91 % (UIN 72 V DC / UOUT 24 V DC)

Output characteristic    U/I

Nominal output voltage    24 V DC ±1 %

Setting range of the output voltage (USet)    18 V DC … 29.5 V DC (> 24 V DC, constant capacity restricted)

Nominal output current (IN)    10 A (-40 °C … 60 °C)

POWER BOOST (IBoost)    12.5 A (-40 °C … 40 °C permanent, UOUT = 24 V DC)

Selective Fuse Breaking (ISFB)    60 A (12 ms)

Magnetic circuit breaker tripping    B2 / B4 / B6

Derating    60 °C … 70 °C (2.5 %/K)

Feedback voltage resistance    35 V DC

Protection against overvoltage at the output (OVP)    < 35 V DC

Max. capacitive load    unlimited

Active current limitation    18 A

Control deviation    < 1 % (change in load, static 10 % … 90 %)

< 2 % (change in load, dynamic 10 % … 90 %)

< 0.1 % (change in input voltage ±10 %)

Residual ripple    < 20 mVPP

Short-circuit-proof    yes

Output power    240 W

Peak switching voltages nominal load    < 10 mVPP (20 MHz)

Maximum no-load power dissipation    4 W (UIN 60 V DC)

Power loss nominal load max.    24 W (UIN 60 V DC)

Rise time    < 2 ms (UOUT (10 % … 90 %))

Connection in parallel    yes, for redundancy and increased capacity

Connection in series    yes

Fuse protection (secondary side)    electronic

thermal-magnetic

thermal

2905011

Signal: DC OK active

Output description    UOUT > 0.9 x UN: High signal

Switching voltage range    18 V DC … 24 V DC

Maximum inrush current    < 20 mA (short-circuit-proof)

Signal: POWER BOOST, active

Output description    IOUT < IN: High signal

Switching voltage range    18 V DC … 24 V DC

Maximum inrush current    < 20 mA (short-circuit-proof)

Signal: UIN OK, active

Output description    UIN > 19.2 V: High signal

Switching voltage range    18 V DC … 24 V DC

Maximum inrush current    ≤ 20 mA (short-circuit-proof)

Signal: DC OK floating

Output description    Relay

Output voltage    ≤ 30 V AC/DC

Maximum inrush current    ≤ 100 mA

Connection method    Screw connection

Conductor cross-section, rigid min.    0.2 mm²

Conductor cross-section, rigid max.    2.5 mm²

Conductor cross-section flexible min.    0.2 mm²

Conductor cross-section flexible max.    2.5 mm²

Conductor cross-section AWG min.    24

Conductor cross-section AWG max.    12

Stripping length    8 mm

Screw thread    M3

Tightening torque, min    0.5 Nm

Tightening torque max    0.6 Nm

Output

Connection method    Screw connection

Conductor cross-section, rigid min.    0.2 mm²

Conductor cross-section, rigid max.    2.5 mm²

Conductor cross-section flexible min.    0.2 mm²

Conductor cross-section flexible max.    2.5 mm²

Conductor cross-section AWG min.    24

Conductor cross-section AWG max.    12

Stripping length    7 mm

Screw thread    M3

Tightening torque, min    0.5 Nm

Tightening torque max    0.6 Nm

Signal

Conductor cross-section, rigid min.    0.2 mm²

Conductor cross-section, rigid max.    2.5 mm²

Conductor cross-section flexible min.    0.2 mm²

Conductor cross-section flexible max.    2.5 mm²

Conductor cross-section AWG min.    24

Conductor cross-section AWG max.    12

Screw thread    M3

Tightening torque, min    0.5 Nm

Tightening torque max    0.6 Nm

Types of signaling    LED

Active switching output

Relay contact

Signal output: DC OK active

Status display    “DC OK” LED green

Color    green

Signal output: POWER BOOST, active

Status display    “BOOST” LED yellow/IOUT > IN : LED on

Color    yellow

Note on status display    LED on

Signal output: UIN OK, active

Status display    LED “UIN < 0.8 x UN V” yellow/UIN < 0.8 x UN V DC: LED on

Color    yellow

Note on status display    LED on

Signal output: DC OK floating

Note on status display    UOUT > 0.9 x UN: Contact closed

Number of phases    1

Insulation voltage input/output    1.5 kV (type test)

1 kV (routine test)

1 kV (type test)

Product family    QUINT POWER

MTBF (IEC 61709. SN 29500)    > 1349000 h (25 °C)

> 765000 h (40 °C)

Insulation characteristics

Protection class    I

Degree of pollution    2
