Phoenix 2866585 QUINT-DIODE/48DC/40 – Redundancy module, with protective coating
2866585 QUINT-DIODE/48DC/40 – Redundancy module, with protective coating

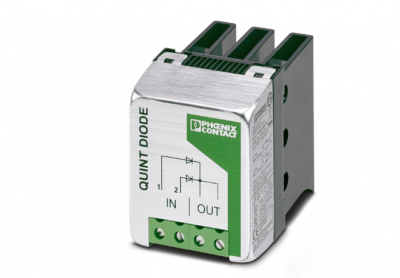

QUINT-DIODE/48DC/40 redundancy module
DC operation
Input voltage 48 V DC (UN)
< 60 V DC (Umax)
Input voltage range 10 V DC … 60 V DC
Input voltage range DC 10 V DC … 60 V DC
Voltage type of supply voltage DC
Reverse polarity protection yes, < 120 V
Nominal input current (IN) 2x 20 A
1x 40 A
Maximum current Imax 2x 19 A (6 mm² at 40°C)
1x 39 A (6 mm² at 40°C)
2x 16 A (6 mm² at 60°C)
1x 32 A (6 mm² at 60°C)
2x 27 A (10 mm² at 40°C)
1x 54 A (10 mm² at 40°C)
2x 21 A (10 mm² at 60°C)
1x 43 A (10 mm² at 60°C)
2x 30 A (16 mm² at 40 °C)
1x 60 A (16 mm² at 40 °C)
2x 24 A (16 mm² at 60°C)
1x 48 A (16 mm² at 60°C)
Nominal input current (IN) 2x 20 A
1x 40 A
Maximum current Imax 2x 17 A (6 mm² at 40°C for potentially explosive areas: Class I, Div. 2. Groups A, B, C, D; T4)
1x 35 A (6 mm² at 40°C for potentially explosive areas: Class I, Div. 2. Groups A, B, C, D; T4)
2x 14 A (6 mm² at 60°C for potentially explosive areas: Class I, Div. 2. Groups A, B, C, D; T4)
1x 28 A (6 mm² at 60°C for potentially explosive areas: Class I, Div. 2. Groups A, B, C, D; T4)
2x 24 A (10 mm² at 40°C for potentially explosive areas: Class I, Div. 2. Groups A, B, C, D; T4)
1x 49 A (10 mm² at 40°C for potentially explosive areas: Class I, Div. 2. Groups A, B, C, D; T4)
2x 19 A (10 mm² at 60°C for potentially explosive areas: Class I, Div. 2. Groups A, B, C, D; T4)
1x 39 A (10 mm² at 60°C for potentially explosive areas: Class I, Div. 2. Groups A, B, C, D; T4)
2x 27 A (16 mm² at 40°C for potentially explosive areas: Class I, Div. 2. Groups A, B, C, D; T4)
1x 54 A (16 mm² at 40°C for potentially explosive areas: Class I, Div. 2. Groups A, B, C, D; T4)
2x 22 A (16 mm² at 60°C for potentially explosive areas: Class I, Div. 2. Groups A, B, C, D; T4)
1x 44 A (16 mm² at 60°C for potentially explosive areas: Class I, Div. 2. Groups A, B, C, D; T4)
Transient surge protection Transil diode
Voltage drop, input/output approx. 0.7 V
Efficiency > 97 %
Nominal output voltage 47.3 V DC (Input/output voltage drop of 48 V … 0.7 V )
Nominal output current (IN) 40 A
Power loss nominal load max. 28 W
Connection in series no
Connection method Screw connection
Conductor cross-section, rigid min. 0.5 mm²
Conductor cross-section, rigid max. 16 mm²
Conductor cross-section flexible min. 0.5 mm²
Conductor cross-section flexible max. 10 mm²
Conductor cross-section AWG min. 20
Conductor cross-section AWG max. 6
Stripping length 10 mm
Screw thread M4
Tightening torque, min 1.2 Nm
Tightening torque max 1.5 Nm
Output
Connection method Screw connection
Conductor cross-section, rigid min. 0.5 mm²
Conductor cross-section, rigid max. 16 mm²
Conductor cross-section flexible min. 0.5 mm²
Conductor cross-section flexible max. 10 mm²
Conductor cross-section AWG min. 20
Conductor cross-section AWG max. 6
Stripping length 10 mm
Screw thread M4
Tightening torque, min 1.2 Nm
Tightening torque max 1.5 Nm
Insulation voltage output / PE 1 kV
Insulation voltage input / PE 1 kV
Product family QUINT DIODE
LED no
Insulation characteristics
Protection class II
Degree of pollution 2
Width 62 mm
Height 84 mm
Depth 102 mm
Horizontal pitch 3.4 Div.
Installation dimensions
Installation distance right/left 5 mm / 5 mm
Installation distance top/bottom 50 mm / 50 mm
Mounting type DIN rail mounting
Assembly note alignable: horizontal 20 mm, vertical 50 mm
Mounting position horizontal and vertical DIN rail NS 35. EN 60715
Housing material Metal
Type of housing AIMg (hood), GD-ZnAICu (cooling unit)
Ambient conditions
Degree of protection IP20
Ambient temperature (operation) -25 °C … 70 °C (> 60 °C derating, -25 … 60°C)
Ambient temperature (storage/transport) -40 °C … 85 °C
Max. permissible relative humidity (operation) ≤ 95 % (at 25 °C, non-condensing)
Shock 30g, 18 ms in accordance with IEC 60068-2-27
Vibration (operation) 3 Hz … 15 Hz, amplitude ±2.5 mm; 15 Hz … 100 Hz, 2.3g according to IEC 60068-2-6
Temp code T4 (70 °C)
Declaration of conformity in acc. with EN 60079-15 II 3 G Ex nA II T4 X
Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations EN 50178/VDE 0160 (PELV)
Standard – Electrical safety EN 60950-1/VDE 0805 (SELV)
QUINT-DIODE48DC40
