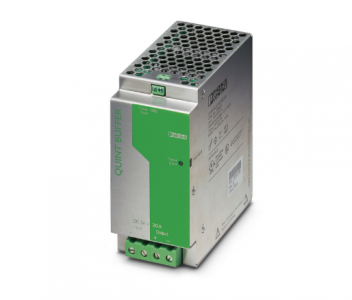

Phoenix 2866213 QUINT-BUFFER/24DC/20 – Buffer module

QUINT-BUFFER/24DC/20 – Buffer module

2866213

Buffer module, 24 V DC/20 A, maintenance-free capacitor-based energy storage. Decoupled input and output.

In the download area, there is a clearly arranged selection table available with load currents and buffer times, as well as charging times after buffer mode.

Short-term mains interruptions are bridged by QUINT BUFFER, a maintenance-free buffer module on a capacitor basis.

Systems can therefore also run in unstable networks or are, in the event of failures of a longer duration, correctly shut down after all relevant process data is saved.

The bridging time is 200 ms at 20 A and 4 s at 1 A. The buffer module also acts as a energy storage device for peak loads and for triggering fuses.

For function monitoring, an active switching output and a control lamp are used.

With the integrated diode, loads can be divided into buffered and unbuffered loads.

Thus, the buffer period is extended and the buffered consumers are protected against errors in the internal network.

Input voltage    24 V DC

Input voltage range    22.5 V DC … 30 V DC

Input voltage range DC    22.5 V DC … 30 V DC

Buffer period    0.2 s (20 A)

4 s (1 A)

Current consumption    approx. 0.1 A

0.6 A (charging process)

20.6 A (max.)

Reverse polarity protection    yes

Charging delay    no

Fixed backup threshold    < 22 V DC

Variable connect threshold    (UIN – 1 V)/0.1 s

Protective circuit    Transient surge protection; Suppressor diode, 35 V DC

Efficiency    > 95 %

Nominal output voltage    24 V DC (depending on the input voltage)

Setting range of the output voltage (USet)    22 V DC … 28.5 V DC

Nominal output current (IN)    20 A

Output current limit    27 A (buffer mode)

Bridging time    200 ms

Feedback voltage resistance    < 35 V DC (buffer mode)

Protection against overvoltage at the output (OVP)    < 35 V DC

Residual ripple    < 100 mVPP (buffer mode)

Output power    480 W

Peak switching voltages nominal load    < 100 mVPP (20 MHz)

Power dissipation    2.5 W (ready at 27 A)

9.8 W (buffer mode at 27 A)

Protective circuit    Transient surge protection; Suppressor diode, 35 V DC

Connection in parallel    yes, for increasing the buffer time and for redundancy

Connection in series    yes

Mains operation

QUINT-BUFFER24DC20

Nominal output voltage    24 V DC

Nominal output current (IN)    20 A

Battery operation

Nominal output voltage    24 V DC

Nominal output current (IN)    20 A

Signal: Active (high = buffer module is loaded)

Output description    Power Good

Maximum switching voltage    ≤ 24 V

Output voltage    + 24 V

Continuous load current    ≤ 20 mA

Charging current    500 mA

Nominal capacity    0.1 Ah

Charging time    < 27 s

Memory medium    internal, capacity

IQ technology    no

Input

Connection method    Screw connection

Conductor cross-section, rigid min.    0.5 mm²

Conductor cross-section, rigid max.    16 mm²

Conductor cross-section flexible min.    0.5 mm²

Conductor cross-section flexible max.    10 mm²

Conductor cross-section AWG min.    20

Conductor cross-section AWG max.    6

Stripping length    10 mm

Screw thread    M4

Tightening torque, min    1.2 Nm

Tightening torque max    1.5 Nm

Output

Connection method    Screw connection

Conductor cross-section, rigid min.    0.5 mm²

Conductor cross-section, rigid max.    16 mm²

Conductor cross-section flexible min.    0.5 mm²

Conductor cross-section flexible max.    10 mm²

Conductor cross-section AWG min.    20

Conductor cross-section AWG max.    6

Stripping length    10 mm

Screw thread    M4

Tightening torque, min    1.2 Nm

Tightening torque max    1.5 Nm

Signal

Conductor cross-section, rigid min.    0.2 mm²

Conductor cross-section, rigid max.    2.5 mm²

Conductor cross-section flexible min.    0.2 mm²

Conductor cross-section flexible max.    2.5 mm²

Conductor cross-section AWG min.    24

Conductor cross-section AWG max.    12

Screw thread    M3

Tightening torque, min    0.5 Nm

Tightening torque max    0.6 Nm

Types of signaling    LED

Active switching output

Operating voltage display    Green LED

Signal output: Active (high = buffer module is loaded)

Status display    LED “Power Good”, green

Note on status display    Buffer module is loaded: LED ON

Insulation voltage input/output    1 kV (routine test)

1 kV (type test)

IQ technology    no

MTBF (IEC 61709. SN 29500)    > 500000 h

Insulation characteristics

Protection class    III

Degree of pollution    2
