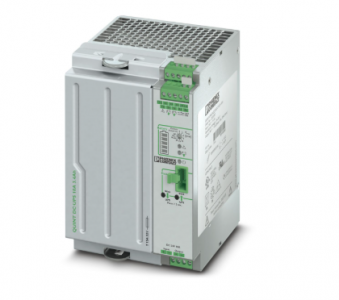

Phoenix 2320267 QUINT-UPS/ 24DC/ 24DC/10/3.4AH – Uninterruptible power supply

QUINT-UPS/ 24DC/ 24DC/10/3.4AH – Uninterruptible power supply

2320267

Uninterruptible power supply with IQ Technology and integrated battery for DIN rail mounting, input: 24 V DC, output: 24 V DC/10 A, battery: lead AGM 4 Ah, including mounted universal DIN rail adapter UTA 107/30

UPS modules with integrated battery are particularly space-saving: the UPS module and battery are combined in one housing.

It’s just a case of connecting a power supply upstream.

This product contains a battery with a limited shelf life that must be charged every few months.

The product packaging indicates when the battery must be started up or recharged.

The general shelf life can be found in the energy storage devices area under “Latest startup”.

Input voltage    24 V DC

Input voltage range    18 V DC … 30 V DC

Input voltage range DC    18 V DC … 30 V DC

Voltage type of supply voltage    DC

Buffer period    180 min (1 A)

10 min (10 A)

Current consumption    17 A (maximum)

65 mA (No-load)

1.7 A (charging process)

11.9 A (at nom. output current and charging)

Efficiency    > 97.6 % (Mains operation, with charged energy storage)

96.41 %

Nominal output voltage    24 V DC

Output voltage range    18 V DC … 30 V DC

Nominal output current (IN)    10 A (0 °C … 40 °C)

Output current limit    > 15 A (Battery operation)

Derating    60 °C … 70 °C (2.5 %/K)

Output power    240 W

Power dissipation    3.1 W (Mains operation)

3.19 W (Mains operation)

1.8 W (Mains operation)

6.3 W (Battery operation)

4 W (Battery operation)

5.1 W (Battery operation)

Output fuse    1x 25 A

Connection in parallel    2

Connection in series    no

Mains operation

230267

Nominal output voltage    24 V DC

Output voltage range    18 V DC … 30 V DC (UOUT = UIN – 0.1 V DC)

Nominal output current (IN)    10 A (0 °C … 40 °C)

POWER BOOST (IBoost)    15 A (0 °C … 40 °C)

Selective Fuse Breaking (ISFB)    60 A (0 °C … 40 °C)

Duration    12 ms (SFB technology)

Battery operation

Nominal output voltage    24 V DC

Output voltage range    19.2 V DC … 27.6 V DC (UOUT = UBAT – 0.5 V DC)

Nominal output current (IN)    10 A (0 °C … 40 °C)

POWER BOOST (IBoost)    15 A (0 °C … 40 °C)

Selective Fuse Breaking (ISFB)    65 A (0 °C … 40 °C)

Duration    15 ms (SFB technology)

Signal: Alarm

Output description    Relay

Output voltage    ≤ 30 V AC/DC

Continuous load current    ≤ 100 mA

Signal: Battery charge

Output description    Relay

Output voltage    ≤ 30 V AC/DC

Continuous load current    ≤ 100 mA

Signal: Battery mode

Output description    Relay

Output voltage    ≤ 30 V AC/DC

Continuous load current    ≤ 100 mA

Signal

Continuous load current    ≤ 200 mA

Types of signaling    LED

Relay contact

Interface/software

Signal output

Signalization designation    Power In OK

Status display    LED

Note on status display    static on

static on

Signal output: Switching output

Signalization designation    Alarm

Status display    LED

Note on status display    static on

Color    red

Note on status display    static on

Signal output: Switching output

Signalization designation    Battery charge

Status display    LED bar graph

Note on status display    dynamic

Color    red/green

Note on status display    dynamic

Signal output: Switching output

Signalization designation    Battery mode

Status display    LED

Note on status display    static on

Color    yellow

Note on status display    static on
