ABB UFC789AE101 | 3BHE014023R0101: High-Performance AC 800PEC Control Unit

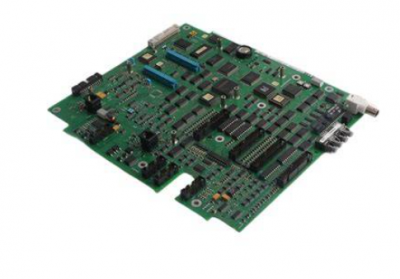

The ABB UFC789AE101 (Part Number: 3BHE014023R0101) is a high-speed control electronic module belonging to the AC 800PEC (Power Electronics Controller) family.

This module is the “computational powerhouse” within ABB’s high-power rectifier and excitation systems, combining the flexibility of a standard PLC with the lightning-fast processing speeds required for power electronics.

It is primarily utilized in UNITROL® 6000 excitation systems and MEGATROL power starter units, providing real-time control over semiconductor switching.

Technical Parameter Table

Related Models

The UFC789AE101 is often integrated with these specialized ABB components:

UFC762AE: Older generation AC 800PEC processor.

UUD148AE02 (3BHE014185R0002): Associated UNITROL control board.

CIO661 / CIO662: Communication I/O modules.

PCD230 / PCD235: User interface panels for the AC 800PEC system.

Application Cases

Generator Excitation Systems: Acting as the main AVR (Automatic Voltage Regulator) controller in UNITROL 6000 systems for large power plants.

Static Frequency Converters (SFC): Controlling high-power thyristors for starting large gas turbines (MEGATROL).

High-Power Rectifiers: Managing large-scale DC power supplies for aluminum smelting and chlorine production.

Wind Power Converters: Providing the high-speed logic necessary for grid-side and generator-side converters in offshore wind turbines.

Product Advantages and Features

Ultra-Fast Control Loops: Features an FPGA-based design capable of cycle times in the microsecond range, essential for controlling power semiconductors.

Deterministic Execution: Unlike standard PLCs, the UFC789AE101 ensures zero-jitter execution of critical control algorithms.

Redundancy Capability: Designed for mission-critical applications where two units can operate in a “Hot Standby” configuration to ensure zero downtime.

Fiber Optic Connectivity: Uses fiber optics for local I/O expansion, providing total galvanic isolation and immunity to extreme electromagnetic noise.

Other Models in the Same Series

3BHE014023R0101 UFC789AE101

UFC789AE102: Revised version with expanded memory or updated firmware.

UFC765AE: Compact version of the AC 800PEC controller.

UFC719AE: Specialized pulse-width modulation (PWM) interface module.

Installation and Maintenance

Installation: The module must be inserted into a shielded subrack. Ensure all fiber optic connectors are clean and free of dust before insertion. The unit should be grounded through the subrack chassis to maintain signal integrity.

Configuration: Software programming is typically handled via ABB Control Builder M or specialized AC 800PEC configuration tools.

Maintenance: No moving parts are included, making the unit low-maintenance. However, it is recommended to check the diagnostic LEDs (Run, Fault, Net) during routine plant inspections. Always backup the application software before replacing a module.

Unique Product Description

The ABB UFC789AE101 (3BHE014023R0101) represents the pinnacle of ABB’s power electronics control technology.

It is not merely a controller; it is the bridge between digital intelligence and raw megawatts. By merging the precision of digital signal processing with industrial-grade ruggedness, the UFC789AE101 ensures that large-scale generators and rectifiers operate with maximum efficiency and grid stability.

In the world of high-voltage engineering, this module is the trusted standard for stability and speed.
