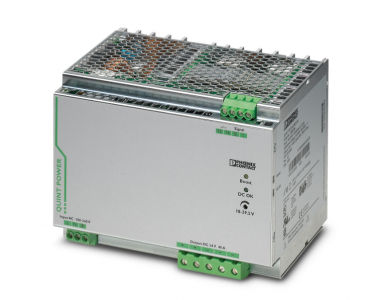

Phoenix QUINT-PS/1AC/24DC/40 2866789 Power supply

QUINT-PS/1AC/24DC/40 – Power supply

2866789

Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting,

SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 24 V DC / 40 A, adjustable from 18 V DC … 29.5 V DC, 90 V DC … 300 V DC

QUINT POWER power supplies with maximum functionality

QUINT POWER circuit breakers magnetically and therefore quickly trip at six times the nominal current, for selective and therefore cost-effective system protection.

The high level of system availability is additionally ensured, thanks to preventive function monitoring, as it reports critical operating states before errors occur.

Reliable starting of heavy loads takes place via the static power reserve POWER BOOST. Thanks to the adjustable voltage, all ranges between 5 V DC … 56 V DC are covered.

Item number    2866789

Packing unit    1 pc

Minimum order quantity    1 pc

Sales key    CM11

Product key    CMPQ13

GTIN    4046356421720

Weight per piece (including packing)    3.820 g

Weight per piece (excluding packing)    3.439 g

Customs tariff number    85044095

Country of origin    TH

QUINT-PS1AC24DC40 2866789

Nominal input voltage range    100 V AC … 240 V AC

Input voltage range    85 V AC … 264 V AC

Derating    < 100 V AC (1 %/V)

Input voltage range AC    85 V AC … 264 V AC

Input voltage range DC    90 V DC … 300 V DC (UL 508: ≤ 250 V DC)

Electric strength, max.    300 V AC

Voltage type of supply voltage    AC

Inrush current    < 15 A (typical)

Inrush current integral (I2t)    < 1.7 A2s

AC frequency range    45 Hz … 65 Hz

Frequency range DC    0 Hz

Mains buffering time    > 35 ms (120 V AC)

> 35 ms (230 V AC)

Current consumption    8.8 A (120 V AC)

4.6 A (230 V AC)

9.5 A (110 V DC)

4.7 A (220 V DC)

Nominal power consumption    1157 VA

Protective circuit    Transient surge protection; Varistor, gas-filled surge arrester

Power factor (cos phi)    0.88

Typical response time    < 0.7 s

Input fuse    20 A (slow-blow, internal)

Permissible backup fuse    B16 B25 AC:

Permissible DC backup fuse    DC: Connect a suitable fuse upstream

Recommended breaker for input protection    16 A … 20 A (AC: Characteristics B, C, D, K)

Discharge current to PE    < 3.5 mA

Number of phases    1

Insulation voltage input/output    4 kV AC (type test)

2 kV AC (routine test)

Insulation voltage output / PE    500 V DC (routine test)

Insulation voltage input / PE    3.5 kV AC (type test)

2 kV AC (routine test)

Product family    QUINT POWER

MTBF (IEC 61709. SN 29500)    > 900000 h (25 °C)

> 530000 h (40 °C)

> 240000 h (60 °C)
