Phoenix QUINT-DIODE/12-24DC/2×20/1×40 2320157 Redundancy module

Phoenix  QUINT-DIODE/12-24DC/2×20/1×40 2320157   Redundancy module

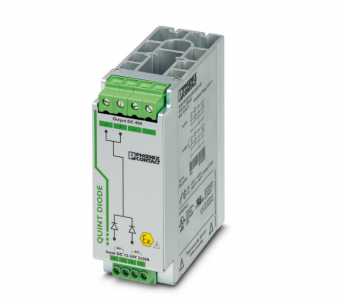

QUINT-DIODE/12-24DC/2X20/1X40 – Redundancy module

2320157

DIN rail diode module 12-24 V DC/2×20 A or 1×40 A. Uniform redundancy up to the consumer.

A safe redundant system is the result of the parallel connection of two power supply units which are decoupled from one another.

To further increase system availability, QUINT DIODE provides the solution: decoupling with diode.

DC operation

Nominal input voltage range    12 V DC … 24 V DC

Input voltage range    10 V DC … 30 V DC

Voltage type of supply voltage    DC

Reverse polarity protection    yes, < 60 V

Nominal input current (IN)    2x 20 A (-25 °C … 60 °C)

1x 40 A (-25 °C … 60 °C)

Maximum current Imax    2x 30 A (-25 °C … 40 °C)

1x 60 A (-25 °C … 40 °C)

Transient surge protection    Varistor

Voltage drop, input/output    typ. 0.5 V

Nominal input voltage range    12 V DC … 24 V DC

Input voltage range    10 V DC … 30 V DC

Input voltage range DC    10 V DC … 30 V DC

Efficiency    > 97 %

Nominal output voltage    UIn – 0.5 V

Nominal output current (IN)    40 A (Increasing power)

20 A (Redundancy)

Derating    60 °C … 70 °C (2.5 %/K)

Power loss nominal load max.    10 W (IOUT = 20 A)

Connection in series    no

Derating    60 °C … 70 °C 2.5 %/K

Input

QUINT-DIODE12-24DC2x201x40 2320157

Connection method    Screw connection

Conductor cross-section, rigid min.    0.2 mm²

Conductor cross-section, rigid max.    6 mm²

Conductor cross-section flexible min.    0.2 mm²

Conductor cross-section flexible max.    4 mm²

Conductor cross-section AWG min.    12

Conductor cross-section AWG max.    10

Stripping length    8 mm

Screw thread    M3

Tightening torque, min    0.5 Nm

Tightening torque max    0.6 Nm

Width    50 mm

Height    130 mm

Depth    125 mm

Horizontal pitch    2.8 Div.

Item number    2320157

Packing unit    1 pc

Minimum order quantity    1 pc

Sales key    CM18

Product key    CMRQ43

GTIN    4046356524766

Weight per piece (including packing)    984 g

Weight per piece (excluding packing)    750 g

Customs tariff number    85363030

Country of origin    IN

lectromagnetic compatibility    Conformance with EMC Directive 2014/30/EU

Low Voltage Directive    Conformance with Low Voltage Directive 2014/35/EC

EMC requirements for noise emission    EN 61000-6-3

EN 61000-6-4

EMC requirements for noise immunity    EN 61000-6-1

EN 61000-6-2
