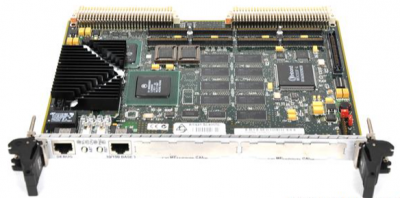

MOTOROLA MVME2432 01-W3394F-03C VME Processor Module
MOTOROLA MVME2432 01-W3394F-03C VME Processor Module
Features:
PowerPC750 32-Bit Microprocessor
32 KB/32 KB L1 Cache
1 MB Backside L2 Cache
32 MB to 512 MB of On-Board ECC SDRAM
The Motorola MVME2400 series of VME boards provides the performance of Motorola’s PowerPlus II Architecture and the ability to be fully customized to satisfy your application needs with two PCI Mezzanine Cards (PMCs).
The flexibility of the MVME2400 provides an excellent base platform that can be quickly and easily customized for a variety of industry-specific applications.
Utilizing Motorola’s low-power, high-performance PowerPC 750 microprocessors, the Peripheral Component Interconnect (PCI) bus for the on-board peripherals,
processor/memory bus to PCI bus bridge, and a VME interface, the MVME2400 processor modules pack optimum levels of flexibility and performance into a single VME slot.
Safety
All printed wiring boards (PWBs) are manufactured with a flammabil
ity rating of 94V-0 by UL recognized manufacturers.
Electromagnetic Compatibility (EMC)
Intended for use in systems meeting the following regulations:
U.S.: FCC Part 15. Subpart B, Class A
Canada: ICES-003. Class A
This product was tested in a representative system to the following
standards:
CE Mark per European EMC Directive 89/336/EEC with Amend
ments; Emissions: EN55022 Class B; Immunity: EN50082-1
Software Support
The MVME2400 is supported by a variety of operating systems,
including a complete range of real-time operating systems and ker
nels.Part Number
Description
MVME2432
All modules include 1MB backside L2 cache, 9MB Flash, and the
option of either the original VME Scanbe front panel and handles or
the IEEE 1101 compatible front panel with injector/ejector handles.
MVME2401-1 233 MHz MPC750. 32MB ECC SDRAM, Scanbe
handle
MVME2401-3 233 MHz MPC750. 64MB ECC SDRAM, IEEE
handle
MVME2403-1 233 MHz MPC750. 32MB ECC SDRAM Scanbe
handle
MVME2403-3 233 MHz MPC750. 32MB ECC SDRAM, IEEE
handle
MVME2431-1 350 MHz MPC750. 32MB ECC SDRAM, Scanbe
handle
MVME2431-3 350 MHz MPC750. 32MB ECC SDRAM, IEEE
handle
MVME2432-1 350 MHz MPC750. 64MB ECC SDRAM, Scanbe
handle
MVME2432-3 350 MHz MPC750. 64MB ECC SDRAM, IEEE
handle
MVME2433-1 350 MHz MPC750. 128MB ECC SDRAM,
Scanbe handle
MVME2433-3 350 MHz MPC750. 128MB ECC SDRAM, IEEE
handle
MVME2434-1 350 MHz MPC750. 256MB ECC SDRAM,
Scanbe handle
MVME2434-3 350 MHz MPC750. 256MB ECC SDRAM, IEEE
handle
MVME2400-0321 450 MHz MPC750. 32MB ECC SDRAM, Scanbe
MVME2400-0323 450 MHz MPC750. 32MB ECC SDRAM, 1101
MVME2400-0331 450 MHz MPC750. 64MB ECC SDRAM, Scanbe
MVME2400-0333 450 MHz MPC750. 64MB ECC SDRAM, 1101
MVME2400-0341 450 MHz MPC750. 128MB ECC SDRAM,
Scanbe
MVME2400-0343 450 MHz MPC750. 128MB ECC SDRAM, 1101
MVME2400-0351 450 MHz MPC750. 256MB ECC SDRAM,
Scanbe
MVME2400-0353 450 MHz MPC750. 256MB ECC SDRAM, 1101
MVME2400-0361 450 MHz MPC750. 512MB ECC SDRAM,
Scanbe
MVME2400-0363 450 MHz MPC750. 512MB ECC SDRAM, 1101
Related Products
PMCSPAN-002 Primary PCI expansion, mates directly to the
MVME2400 providing slots for either two single
wide or one double-wide IEEE P1386.1 compli
ant PMC cards; optional PMCSPAN-010
PMCSPAN(1)-002 PMCSPAN-002 with original VMEbus Scanbe
handles
PMCSPAN-010 Secondary PCI expansion, plugs directly into
PMCSPAN-002 providing two additional PMC
slots
PMCSPAN(1)-010 PMCSAN-010 with original VMEbus Scanbe
handles
