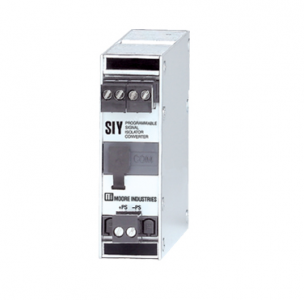

Moore SIY/PRG/4-20MA/10-42DC SIY PC Programmable Signal Isolator and Converter

SIY PC Programmable Signal Isolator and Converter

Model: SIY/PRG/4-20mA/10-42DC [DIN]

Moore Industries’ PC-Programmable SIY Signal Isolator/Converter combines smart digital technology with advanced analog operation to deliver superior reliability,

accuracy, and ease of use.

Input    PRG

Output    4-20mA

Power    10-42DC

Input Description    Programmable, any range within -2.5 to 55mA or -.5 to 11V

Output Description    4-20mA

Power Description    10-42DC, Output loop powered

Housing Description    Universal DIN-style housing, 32mm G-type and 35mm Top Hat

HART Signal Pass-through Capability    No

For use in Safety Instrumented Systems (SIS)    No

Number of Inputs    1

Input Type    Configurable: Any range between 0-50mA and 0-10V

Number of Outputs    1

Device Power    2-Wire, Loop Powered

Integral Display    No

Alarm/Relay Output    No

Configuration/Setup    PC Programmable, USB Cable

Enhanced RFI/EMI Immunity    No

Housing/Enclosure    DIN Rail Enclosure

2″ Pipe Mount Bracket    No

Hazardous Area Certifications    CSA General Location

RoHS Compliant    Yes

SIYPRG4-20MA10-42DC
