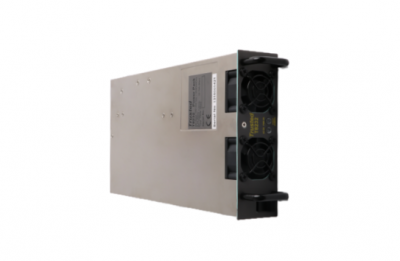

The ICS Triplex T8232 is a high-density, fault-tolerant power supply module designed specifically for the Trusted™ Triple Modular Redundant (TMR) system architecture.

Now under the Rockwell Automation / Allen-Bradley umbrella,

the T8232 serves as a critical component in safety-instrumented systems (SIS) and critical control applications.

Its primary role is to convert main line AC or DC voltages into stable, regulated DC power for the system chassis and field devices, ensuring that a single power failure never results in a total system shutdown.

Technical Parameter Table

Product Advantages and Features

Triple Modular Redundancy (TMR): Internal fault-tolerant design ensures that even if one internal circuit fails, the power delivery remains stable and uninterrupted.

Hot-Swappable Capability: The T8232 can be inserted or removed live while the system is powered, allowing for maintenance without process downtime.

Universal Input: Supports a wide range of global AC and DC input voltages, providing flexibility across different industrial power grids.

Advanced Diagnostics: Real-time monitoring of input/output health, fan status, and over-temperature conditions with integrated LED status indicators.

Load Sharing: When installed in a Power Shelf, multiple T8232 units share the load automatically, increasing total capacity and system longevity.

Application Cases

Oil & Gas Upstream/Downstream: Providing high-integrity power for Emergency Shutdown Systems (ESD) and Fire & Gas (F&G) detection.

Chemical Processing: Ensuring continuous operation of safety controllers in hazardous environments where power loss could lead to dangerous pressure build-ups.

Power Generation: Reliable power source for turbine control systems and generator protection modules.

Nuclear Facilities: Used in safety-critical monitoring where SIL 3 compliance is a mandatory requirement.

Installation and Maintenance

T8232

Installation

Chassis Integration: The T8232 must be installed into a Trusted Power Shelf (T824x series).

Ensure the mechanical latch on the front panel is securely engaged.

Redundancy Setup: For N+1 redundancy, at least two modules should be installed for a single-module load, or three modules for a two-module load.

Cooling: Ensure the internal fans are unobstructed. The module uses forced-air cooling, and airflow must be maintained through the Power Shelf.

Maintenance

Status Monitoring: Periodically check the “Output Power Display” (10-segment LED bar) to ensure no single module is operating at 100% capacity constantly.

Fault Identification: A red LED on the front panel indicates a module failure or over-temperature condition; replace the module immediately if this occurs.

Cleaning: Use compressed air to clear dust from the intake vents every 12 months to prevent overheating.

Other Models in the Same Series

The Trusted family includes several complementary power and control modules:

T8110B / T8111: Trusted TMR Main Processor Modules.

T8230: 24V DC Power Supply with integrated battery backup capabilities.

T8240 / T8243: Trusted Power Shelves (Chassis for T8232 modules).

T8403 / T8431: Trusted TMR Digital Input/Output modules.

T8310: Trusted Expander Interface for multi-chassis configurations.

Unique Product Description

The ICS Triplex T8232 is the “heartbeat” of the Trusted safety system.

While standard power supplies are often the weakest link in an automation chain, the T8232 is engineered as a high-integrity fortress.

With its SIL 3 rating and TMR internal logic, it doesn’t just provide electricity—it provides certainty.

In industries where “failure is not an option,” the T8232 ensures that the safety logic remains energized and active,

protecting both human life and multi-million dollar assets from electrical instability
