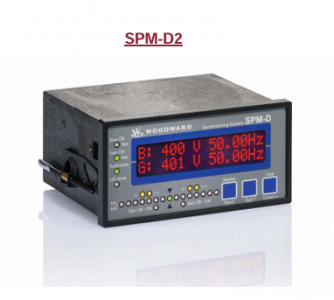

Woodward SPM-D2-1040B/XN analog speed/voltage bias 8440-2190

SPM-D2-1040B/XN analog speed/voltage bias 8440-2190

Woodward’s SPM-D2 is form, fit and function compatible successor to each of the SPM-D line of

synchronizer’s that are currently active. These are simple and robust microprocessor based

synchronizers designed for use on three-phase AC generators equipped with Woodward or other

compatible speed controls and automatic voltage regulators. Some salient features are:

Drop-In Replacement

Same Look and Feel as SPM-D synchronizers

USB Connectivity to PC

Woodward ToolKit service tool support

Marine classification Societies (ABS, LR, DNV) Pending!

USB device port  for connection and configuration through PC (no more DPC cable needed,

RJ45 port removed)

Password protection for SPM-D2-10xx/YB variants

Configuration through HMI without limitation on number of backwards navigation (SPM-Ds are

limited to four time backwards navigation)

Loading default values (reload factory default settings)

Description of the devices change from SPM-Dxxxx to SPM-D2-xxxx

Hardware and Compliance ‐ ‐ ‐ ‐

Declared DC power supply rating 120…375 VDC to the wide range power supply variants (with

“N” extension in description). These units already supports 90..250VAC rating power supply

Removed C-Tick mark from all labels of the SPM-D2

All new units are prepared according to RoHS2 compliance

Ethernet hardware is prepared for further releases (for info)

To select and order your successor P/N, please use the below mapping table. The price of each

of the items stays same at FY16 pricing.

Current P/N

SPM‐D

New P/N

SPM-D2

SPM‐D2 Current Description New Description

8440‐1019 8440‐2164 SPM‐D1040B SPM‐D2‐1040B

8440‐1706 8440‐2165 SPM‐D1115B/LSXR SPM‐D2‐1115B/LSXR

5448‐890 8440‐2166 SPM‐D1010B SPM‐D2‐1010B

5448‐906 8440‐2167 SPM‐D1010B/YB SPM‐D2‐1010B/YB

5448‐893 8440‐2168 SPM‐D1010B/X SPM‐D2‐1010B/X

8440‐1666 8440‐2169 SPM‐D1145B/LSXR SPM‐D2‐1145B/LSXR

8440‐1871 8440‐2170 SPM‐D10B/PSY5‐FU‐D SPM‐D2‐10B/PSY5‐FU‐D

8440‐1301 8440‐2171 SPM‐D1040B/X SPM‐D2‐1040B/X

8440‐1667 8440‐2172 SPM‐D1010B/XN SPM‐D2‐1010B/XN

8440‐1873 8440‐2173 SPM‐D10B/PSY5‐FU‐D‐W SPM‐D2‐10B/PSY5‐FU‐D‐W

8440‐1432 8440‐2174 SPM‐D1010B/N SPM‐D2‐1010B/N

8440‐1433 8440‐2175 SPM‐D1040B/N SPM‐D2‐1040B/N

8440‐1021 8440‐2176 SPM‐D1040B/YB SPM‐D2‐1040B/YB

8440‐1434 8440‐2177 SPM‐D1010B/NYB SPM‐D2‐1010B/NYB

8440‐1435 8440‐2189 SPM‐D1040B/NYB SPM‐D2‐1040B/NYB

8440‐1668 8440‐2190 SPM‐D1040B/XN SPM‐D2‐1040B/XN
