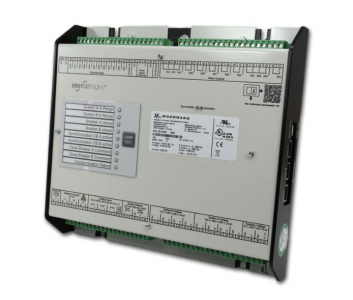

Woodward: LS-612XT-P2 8440-2317

Product number: 8440-2317

Description: Woodward: CONTROL-LS-612XT-P2. Cabinet back mounting without display

Salient Features

Redundant communication (CAN-Eth, Eth-Eth)

Connects to easYgenXT and group controller

Manage one or two breakers

Touch screen remote operator panel

Power measurement class 1

Direct connect up to 690 Vac

Power supply 12/24 Vdc (8 to 40 Vdc)

Intrinsic consumption max. 22 W

8440-2317

Ambient temp. (operation) -40 to 70 °C / -40 to 158 °F

Ambient temp. (storage) -40 to 80 °C / -40 to 176 °F

Ambient humidity 95 %, non-condensing

Voltage (software configurable)  (Y / ∆)

100Vac Rated (Vrated) 69 / 120 Vac

Max value (Vmax) 86 / 150 Vac

400 / 600 VAC  Rated (Vrated) 400 / 690 VAC

Max. value (Vmax) 520 / 897 VAC

Rated surge Volt. (Vsurge) 6.0 kV

Accuracy Class 0.5

Measurable alternator windings

3p-3w, 3p-4w, 3p-4w OD, 1p-2w, 1p-3w

Setting range primary  50 to 650.000 Vac

Linear measuring range 1.25×Vrated

Measuring frequency 50/60 Hz (30 to 85 Hz)

High Impedance Input; Resistance per path 2.5 MΩ

Max. power consumption per path < 0.15 W

Current (Isolated, software configurable)

Rated (Irated)  1 A or 5 A

Linear measuring range IsystemA = 3.0×Irated

IsystemB = 1.5×Irated

Setting range  1 to 32.000 A

Burden  < 0.10 VA

Rated short-time overcurrent (1 s) [1] 50×Irated,

[5] 10×Irated

Accuracy Class 0

Power

Setting range 0.5 to 99.999.9 kW/kvar

Accuracy Class 1.0

Discrete inputs isolated

Input range 12/24 VDC (8 to 40 VDC)

Input resistance approx. 20 kΩ

Relay outputs isolated

Contact material AgNi

Load (GP) 2.00 Aac@250 Vac 2.00 Adc@24 VDC

Analog inputs (isolated) freely scalable

Type 1 0 to 1 V / 0 to 2000 Ohms / 0 to 20 mA

Resolution 16 Bit

Maximumpermissible voltage against genset Ground 9 V

Maximum permissible voltage genset Ground to PE  100 V

Analog outputs (isolated) freely scalable

Type 1 ± 10 V / ± 20 mA / PWM

Basic insulation voltage (AO#2) 500 Vac

Reinforced insulation voltage (AO#2) 300 Vac

Insulation voltage (AO#1) 100 Vac

Resolution 12 Bit

Output ± 10 V (scalable) Internal resistance

Output ± 20 mA (scalable) Maximum load 500 Ω

Housing  Back panel mounting,

Powder Coated Sheet metal housing

Dimensions W x H x D (P1): 250 × 228 × 50 mm

Connection screw/plug terminals 2.5 mm²

Protection system IP 20

Weight approx. 1.750 g

Listings CE, UL, cUL, LR/ABS

Genset Controller easYgen-3400/3500XT (Product Specification # 37583)

• Group Controller easYgen | GC-3400XT-P1 (Product Specification # 37896)

• ToolKit (Product Specification # 03366)

• LDSS Emulation Tool (Product Specification #37897)

• easYview (Product Specification #37951)

• DataTelegramMapper Tool (Application Note #37684)

• Localization tool (P/N: 10-011-569)

• Modbus master tool (Application Note #37919)

• Ethernet Interconnect Mapper tool (P/N: 10-031-249)

• I/O Expansion Board IKD1 (Product spec. #37171. #37984. #37985)

• Remote Annunciator easYlite-200 (Product spec.#37907)
