Woodward: easYgen-3100XT 8440-2081

easYgen-3100XT-P1 Series

A easYgen-3200XT-P1(-LT) (plastic housing with

display)

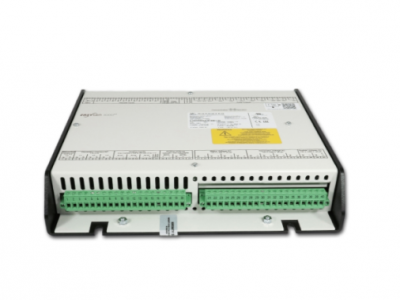

B easYgen-3100XT-P1 (sheet metal housing)

1 Mains/generator/busbar PT terminal

2 Analog inputs/outputs, generator CT, and

mains/GND current terminal

3 Discrete inputs, MPU, power supply, and D+ ter

mina

4 Relay outputs terminal

5 CAN bus interface connector CAN #1

6 CAN bus interface connector CAN #2

7 RS-485 interface connector RS-485 #1

8 ETHERNET interface connector (RJ-45) LAN #1

9 USB interface connector (2.0. slave) SERVICE

port

8440-2081

The easYgen-3000XT series are control units for engine-generator

system management applications.

The control units can be used in applications such as: co-genera

tion, stand-by, AMF, peak shaving, import/export or distributed

generation.

The easYgen-3000XT series is also applicable for islanded, island

parallel, mains parallel and multiple unit mains parallel operations.

Scope of delivery

The following parts are included in the scope of delivery. Please

check prior to the installation that all parts are present.

Fig. 3: Scope of delivery – schematic

A Device easYgen-3100XT-P1/3200XT-P1(-LT)

genset control (plastic or sheet metal housing).

All screwable terminal connectors are coming

with plug and jack.

B Product CD (configuration software and manual)

C and D with plastic housing easYgen-3200XT

P1(-LT) only:

C Clamp fastener installation material – 4 x

D Screw kit installation material – 12 x

Fig. 4: Sample application setup

A typical application mode for the control unit is the use for mains

parallel operation in a multi genset application.

n In this case, the easYgens-XT will function as an engine con

trol with generator, mains and engine protection.

n The control unit can open and close the generator circuit

breaker (GCB) and the mains circuit breaker (MCB).

n The easYgens-XT are well prepared for system control and

management, “talking” with other easYgens-3100XT/3200XT

and easYgens-3400XT/3500XT
