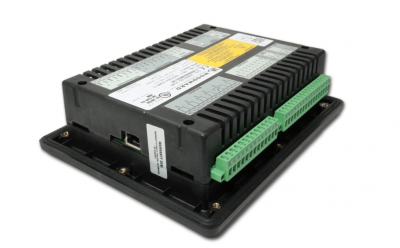

Woodward easYgen-2300-5/P2 8440-2058

to 16 gensets in island operation, or parallel operation of a single unit with a utility. Its integrated load depend

ent start/stop programming allows you to define how gensets are brought on- and off-line to support changing

load demands. It equally works with a mix of different sized engines, so you can maintain the spinning reserve

you need while optimizing fuel efficiency.

The easYgen-2000 Series works with many common industrial interfaces: CANopen for peer-to-peer load shar

ing; J1939 for engine ECU; Modbus RTU for PLC, HMI, and SCADA; and modem for remote control and pro

gramming using Woodward ToolKit software.

FlexAppTM– This feature provides the tools to easily configure the number of operated breakers: None, GCB,

GCB and MCB.

LogicsManagerTM – Woodward’s LogicsManager enables to change the operation sequences and adapt them

to specific needs. The LogicsManager accomplishes this by monitoring a range of measuring values and inter

nal states, which are combined logically with Boolean operators and programmable timers. This enables to cre

ate and/or modify control and relay functions.

FlexInTM– The analog inputs are configurable to operate with VDO, resistive, and/or 0 to 20 mA senders.

Flexible Outputs – Speed and voltage bias outputs are configurable to function with all speed governors and

voltage regulators. The outputs can also be used as freely scalable outputs (e.g. for driving external meters).

FlexCANTM– Flexible and isolated CAN bus providing different protocols: CANopen protocols; coupling of IKD 1

expansion cards (up to 16DIs/16DOs) as well as of 3rd party expansion cards (request more detailed infor

mation from our sales department). ECU 1939 communication with start/stop and alarm management.

FEATURES

8440-2058

• Operation modes: Auto, Stop, Manual, and Load/No Load test modes via discrete input possible

• Breaker control: Slip frequency / phase matching synchronization, open-close control, breaker monitoring

• Load transfer features: open / closed transition, interchange, soft loading / soft unloading, mains parallel

• Remote control via interface and discrete/analog inputs for adjusting speed, frequency, voltage, power, reac

tive power, and power factor set points

• Active power and reactive power load sharing with up to 16 units including load-dependent start/stop

• Neutral interlocking function to ensure only one of the running generators is bridged to earth

• Operating hours/start/maintenance counters – Operating hours also available from a connected ECU via

J1939/CAN

• Supported ECU: Scania EMS/S6. Deutz EMR2. Volvo EMS2. MTU ADEC ECU7/8. Woodward EGS, MAN

EDC 7. SISU EEM2/3. Cummins, Perkins and J1939 standard messages

• Event recorder (300 events, FIFO) with real time clock (battery backed; min. 5 years)

• 128×64 dot graphical interactive LC display with soft keys

• Start/stop logic for Diesel/Gas engines

• Engine pre-glow or purge control

• Warm-up control via timer or coolant temperature

• PC and/or front panel configurable (ToolKit software)

• Multi-level password protection

• Discrete I/O expansion board connectivity (Woodward IKD 1 or Phoenix Contact IL series)

• Multi-lingual capability (11 languages in 1 unit configurable: English, German, French, Spanish, Chinese, Jap

anese, Italian, Portuguese, Turkish, Russian, Polish)

Island, mains parallel &

AMF operation

• Load sharing and load

dependent start/stop for

up to 16 units

• Synchronization with

phase matching and slip

frequency

• Load transfer programs

• Soft loading features

• Open/closed transition

• CANopen / J1939 ECU

Control

• Freely configurable

discrete & analog I/Os

• Multi-lingual display

• Fast configuration by

partial setting files

• Modbus RTU Protocol

• Neutral interlocking

function

• Generator kWh/kvarh

meter

• Dynamic mains stabili

zation (as per BDEW)

• QV monitoring
