Woodward High Output Digital Valve Positioner DVP5000 and DVP10000
High Output Digital Valve Positioner
DVP5000 and DVP10000
Applications
The second-generation Woodward DVP is
the state-of-the-art driver for Woodward
electric actuation. It features a rugged and
compact rack-mount design for use with
various Woodward valves and actuators. It
provides precise positioning based on
multiple input configurations to offer end
users flexibility when connecting to industrial
control systems.
The choice of DVP is dependent on the
valve/actuator chosen for the application.
Please consult Woodward for recommendations.
Description
The High Output DVP is designed to control valves and actuators with brushless DC
(BLDC) motor types. The driver positions based on resolver feedback located on the
valve or actuator. The DVP uses the latest in Woodward control architecture to
provide high-speed precise valve control in challenging applications.
The DVP is designed for plug-and-play installations on many valve types. Woodward
has integrated smart technology into the new generation of valves and actuators
called an ID (identification) module. Upon connection to a valve or actuator equipped
with an ID module, the DVP automatically reads critical product-specific information
to set up the driver. After this auto-detection and customer configuration, the DVP is
ready for use.
The DVP is available in multiple configurations:
Connector or terminal block outputs

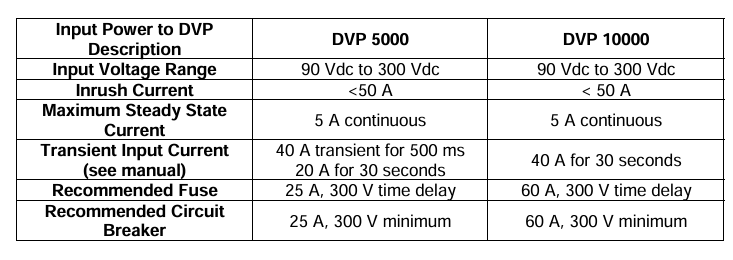

90–300 Vdc input voltage
5000 W output power with 90–300 Vdc
10 000 W output power with 200–300 Vdc
EGD (Ethernet), CAN open or Analog (4–20 mA or 0–5 Vdc)
5 discrete inputs and 2 discrete outputs
2 X 24 V, 0.25 A outputs for general purpose use
SIL certified independent shutdown (-s models)
Pre-manufactured cables with connectors are available.
125 Vdc Operation
Description: Digital Valve Positioner (DVP5000 and DVP10000) Models
Power Supply Input: 125 Vdc +20%, –28%
Current Draw DVP5000: 5 A steady state, 40 A peak for 200 ms, 25 A for 30 seconds (during rapid actuator
transient)
(Current draw includes actuator power)
Current Draw DVP10000: 5 A steady state, 40 A for 30 seconds (during rapid actuator transient)
(Current draw includes actuator power)
Output Current: 25 A dc (17.7 A rms) continuous, 40 A peak for 200 ms
Package Heat Dissipation: (With Ethernet Option)
45 W nominal, when the actuator is unpowered.
110 W (preliminary) typical with actuator powered
160 W (preliminary) @ maximum heat load
(Without Ethernet Option)
40 W nominal, when the actuator is unpowered.
105 W (preliminary) Typical with actuator powered
155 W (preliminary) @ maximum heat-load
(This is the heat-load caused by the DVP and occurs when the associated actuator
is driven at full output current.)
Mechanical Dimensions: Rear Panel Mount DVP5000
388 x 308 x 127 mm (H x D x W) (15.26 x 12.125 x 5.0 inches)
Rear Panel Mount DVP10000
388 x 308 x 158 mm (H x D x W) (15.26 x 12.125 x 6.23 inches)
DVP5000 Weight: 7.9 kg (17.4 lb)
DVP10000 Weight: TBD
220 Vdc Operation
Description: Digital Valve Positioner (DVP5000 and DVP10000) Models
Power Supply Input: 220 Vdc +36%, –15%
Current Draw DVP5000: 5 A steady state, 40 A peak for 200 ms, 25 A for 30 seconds (during rapid actuator
transient)
(Current draw includes actuator power)
Current Draw DVP10000: 5 A steady state, 40 A for 30 seconds (during rapid actuator transient)
(Current draw includes actuator power)
Output Current: 25 A dc (17.7 A rms) continuous, 40 A peak for 200 ms
Package Heat Dissipation: (With Ethernet Option)
40 W nominal
160 W (preliminary) @ maximum heat- load
(This is the heat-load caused by the DVP and occurs when the associated actuator
is driven at full output current.)
(Without Ethernet Option)
40 W Nominal
155 W (preliminary) @ maximum heat-load
(This is the heat-load caused by the DVP and occurs when the associated actuator
is driven at full output current.)
Environmental Specifications (Rear Panel Mount)
Ambient Operating
Temperature: –40 to +70 °C (–40 to +158 °F)
Storage Temperature: –40 to +105 °C (–40 to +221 °F)
Humidity: 0 to 100% non-condensing
Mechanical Vibration: Woodward Specification RV5 (0.04 G²/Hz, 10–500 Hz, 2 hours/axis, 1.04 Grms)
Mechanical Shock: Woodward Specification MS2 (30 G, 11 ms half sine pulse)
EMC/EMI: EN 61800-3: EMC Requirements and Test Methods for Adjustable Speed Electrical
Power Drive Systems (Category 3. 2nd Environment);
Woodward Spec: Conducted Low Frequency Immunity, 50 Hz to 10 kHz
Environmental Protection IP20 per IEC 60529. Must be installed in enclosure or cabinet to provide a minimum
IP54 level of protection against dust and moisture when used in Hazardous
Locations.
Regulatory Compliance
European Compliance for CE Marking:
These listings are limited only to those units bearing the CE Marking.
EMC Directive:
Low Voltage Directive:
ATEX – Potentially
Explosive Atmospheres
Directive:
North American Compliance:
2004/108/EC COUNCIL DIRECTIVE of 15 December 2004 on the approximation of
the laws of the Member States relating to electromagnetic compatibility and all
applicable amendments.
Declared to 2006/95/EC COUNCIL DIRECTIVE of 12 December 2006 on the
harmonization of the laws of the Member States relating to electrical equipment
designed for use within certain voltage limits.
Declared to 94/9/EEC COUNCIL DIRECTIVE of 23 March 1994 on the
approximation of the laws of the Member States concerning equipment and
protective systems intended for use in potentially explosive atmospheres.
Zone 2. Category 3 G, Ex nA IIC T4 X; IP-20
These listings are limited only those units bearing the CSA Identification.
CSA:
CSA Certified for Class I, Division 2. Groups A, B, C, and D, T4 at 70 °C (3-Board
Configuration) and 70 °C (2-Board Configuration) ambient, for use in USA and
Canada, Certificate 160584-1682018
This product is certified as a component for use in other equipment. The final combination is subject to acceptance
by the authority having jurisdiction or local inspection.
Alternative product certifications may be available. Please contact your Woodward representative for details.
