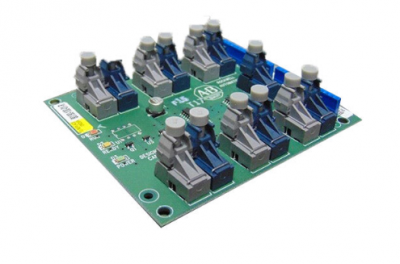

A-B 80190-100-01-R Regulator / Logic Control Board

Allen-Bradley 80190-100-01-R is a specialized power logic or regulator board, originally part of the Reliance Electric line and now supported under the Rockwell Automation / Allen-Bradley brand.

This “R” suffix model indicates a factory-renewed or refined version of the classic 100-series control boards used in high-performance drive systems.

Introduction

The 80190-100-01-R is a core control component designed for the FlexPak 3000 and GV3000 drive families.

It functions as a primary interface between the drive’s software logic and the physical power hardware.

Its role is to process feedback signals and execute precise control commands to manage motor speed, torque, and direction in demanding industrial environments.

Technical Parameter Table

80190-100-01-R

Unique Product Description

The 80190-100-01-R is distinguished by its integrated error-correction logic.

Unlike standard interface boards, the “100” series was engineered to handle high-speed data throughput without signal “jitter.”

This makes it exceptionally reliable for high-inertia loads where even a microsecond of signal delay could lead to mechanical stress or system trips.

The “R” designation ensures the board meets updated thermal resistance standards compared to the original 1990s-era manufacturing runs.

Product Advantages and Features

Enhanced Thermal Management: Optimized trace layout to dissipate heat more effectively than earlier revisions.

High-Speed Feedback Processing: Specifically tuned for closed-loop systems requiring real-time encoder or tachometer data.

System Longevity: Provides a direct replacement path for aging legacy systems, extending the life of multi-million dollar plant assets.

Industrial Hardening: Features a specialized solder mask to resist oxidation in environments with high humidity or chemical vapors.

Application Cases

Web Handling: Managing precise tension in paper, film, and foil conversion lines.

Tire & Rubber: Controlling the heavy-duty mixing and extrusion processes where torque consistency is vital.

Crane & Hoist: Ensuring smooth acceleration and deceleration curves for heavy lifting operations.

Plastic Injection Molding: Providing the repeatable motor control necessary for high-quality part consistency.

Installation and Maintenance

Alignment: When inserting into the card cage, ensure the board aligns perfectly with the guide rails to avoid bending the backplane pins.

Jumper Verification: Before powering up, verify that all onboard jumpers (if present) match the original board’s settings for voltage and signal scaling.

Cleaning: During maintenance, use only non-residue electronic contact cleaner on the edge connectors.

Grounding: Ensure the drive chassis is properly grounded to the common bus to prevent EMI from interfering with the board’s logic.

Other Models in the Same Series

80190-100-02-R: Updated version for specific drive software revisions.

80190-099-01: Standard I/O interface board.

80190-480-01: Power-side driver board.

80190-630-01: High-voltage power interface.

Related Models

FlexPak 3000 Digital DC Drive

GV3000/SE AC Drive Units

0-57434-P (Pulse Transformer Board)

601211-W (SCR/Thyristor Modules)
