UniOP MKDR-16-0045 Exor UniOP

1. Introduction

The UniOP MKDR-16-0045 is a versatile and robust HMI (Human Machine Interface) belonging to the esteemed MK Series by Exor.

Unlike standard text-only panels, the MKDR-16 features a sophisticated combination of a high-contrast graphic display and an extensive functional keyboard.

It is engineered for complex machine control where precision, durability, and multi-page menu navigation are critical for operational efficiency.

2. Technical Parameter Table

3. Related Models

For users looking for alternatives or compatible hardware within the UniOP ecosystem:

MKDR-04-0045: A more compact version with fewer function keys.

MKDG-06: Enhanced graphics capabilities with a larger screen.

MKDR-VGA: High-resolution version for detailed schematic monitoring.

CP10G-04: Entry-level graphic panel for simpler applications.

4. Application Cases

CNC Machining Centers: Used for inputting precise coordinates and monitoring tool wear through the 16 function keys.

Pharmaceutical Processing: Ideal for clean-room environments where operators use thick gloves (physical keys are superior to touchscreens here).

Logistics & Conveyor Systems: Managing complex sorting logic and displaying real-time error codes across long production lines.

Power Generation: Monitoring generator parameters and synchronizing data across multiple PLCs.

5. Product Advantages and Features

High-Density Keyboard: The 16 dedicated function keys (F1-F16) allow for “one-touch” access to critical screens, reducing operator response time.

Multi-Driver Connectivity: Supports over 200+ PLC communication drivers, including Siemens S7. Allen-Bradley SLC, and Modbus.

Graphic Versatility: Capable of displaying simple bitmaps, bar graphs, and trend lines, not just text.

Dual-Port Capability: Often used with an optional “Aux Port” for simultaneous communication with a PLC and a printer or PC.

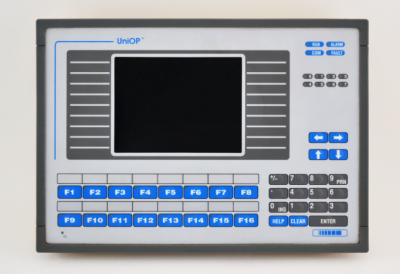

MKDR-16-0045

6. Other Models in the Same Series

The UniOP MK Series is known for its “Keyboard + Graphic” hybrid design:

MKDR-05: Basic graphic panel.

MKDL-12: Mid-range workstation interface.

MKDR-16-0046: Variant with expanded internal memory for heavy data logging.

7. Installation and Maintenance

Installation

Panel Mounting: Requires a standard rectangular cutout. Secure using the provided screw-clamps to ensure a dust-tight seal.

Grounding: Ensure the terminal is properly grounded to the cabinet frame to prevent data corruption from electrical noise.

Maintenance

Overlay Care: The membrane is resistant to oils and chemicals, but avoid using sharp objects (like screwdrivers) on the keys.

Software Backup: Always keep a copy of the project file created in UniOP Designer or JMobile for quick recovery in case of hardware failure.

8. Unique Product Description

The UniOP MKDR-16-0045 is the “Bridge Model” of the industrial world. It bridges the gap between old-school physical reliability and modern graphic feedback.

While many modern HMIs have moved to fragile glass touchscreens, the MKDR-16 remains the preferred choice for heavy industrial environments where heat, vibration, and debris would cause touchscreens to fail.

Its 16-key layout is legendary for creating “shortcut-heavy” workflows that maximize plant productivity.
